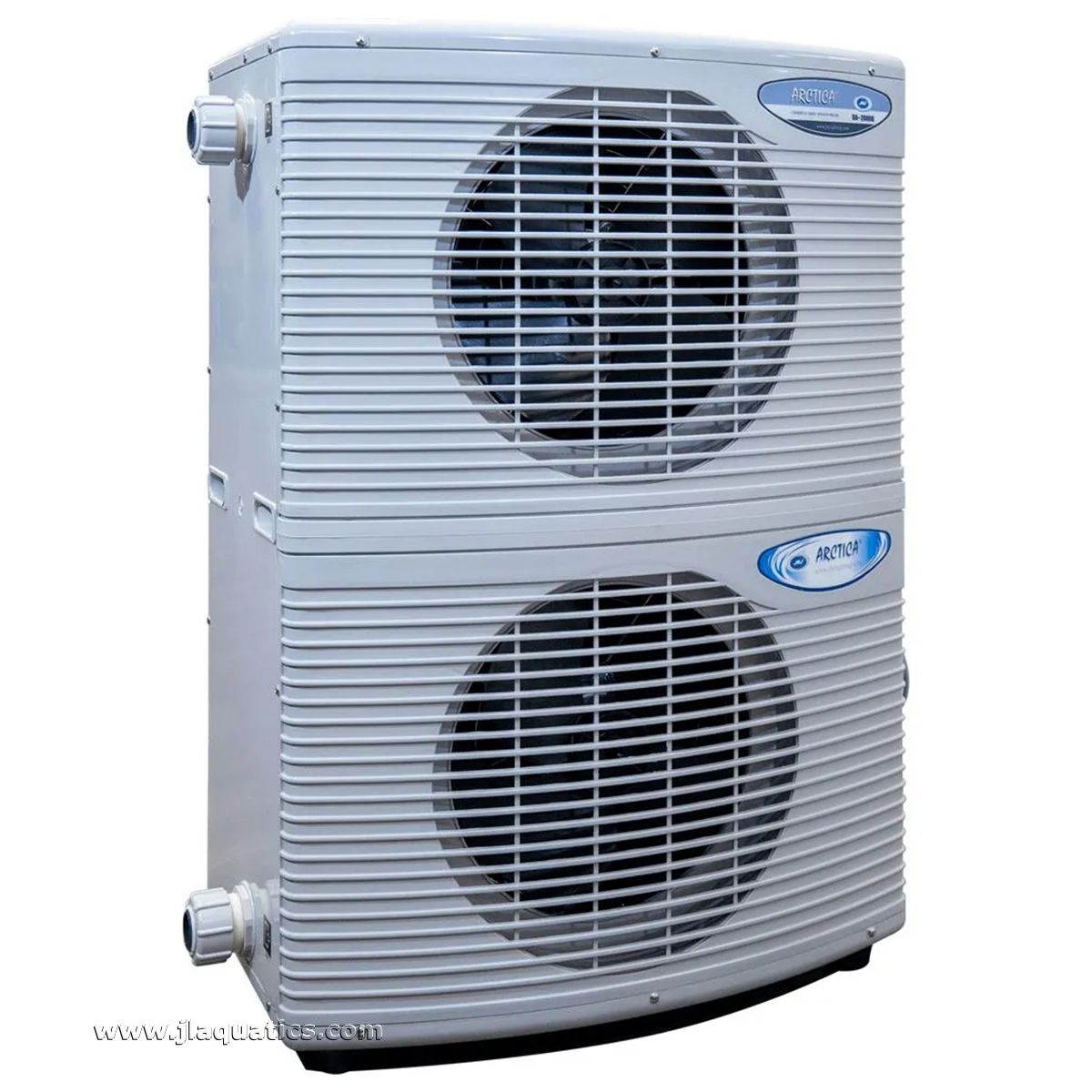

JBJ Arctica 3HP Commercial Chiller - 230V
The JBJ Arctica 3HP Commercial Chiller - 230V is the highest-capacity model in the JBJ Arctica Commercial Series lineup, built for very large aquatic systems with demanding cooling requirements. With a 3HP compressor platform, titanium Helix heat exchanger, remote Auto IC digital LED temperature controller, and 36000 BTU cooling capacity, the DA-3000 is designed for large reef systems, public displays, aquatic holding systems, commercial livestock systems, coldwater applications, and other high-volume installations.
JBJ Arctica 3HP Commercial Chiller Overview
The DA-3000 3HP Commercial Chiller is intended for the largest and most heat-demanding aquarium and aquatic-system applications in the JBJ commercial lineup. It is rated for aquariums around 800 gallons under recommended sizing conditions, with a maximum aquarium size rating up to 3000 gallons depending on heat load, ambient temperature, livestock requirements, desired temperature pull-down, plumbing layout, and room ventilation. This 230V commercial model is designed to be wired directly to circuit, with no cord or plug included.
Features of the JBJ Arctica 3HP Commercial Chiller
- 3HP commercial cooling platform: Provides the strongest cooling capacity in the JBJ Arctica Commercial Series lineup.
- 36000 BTU cooling capacity: Delivers high-volume heat removal for very large aquariums and commercial aquatic systems.
- Titanium Helix heat exchanger: Corrosion-resistant titanium supports efficient cooling in freshwater and saltwater environments.

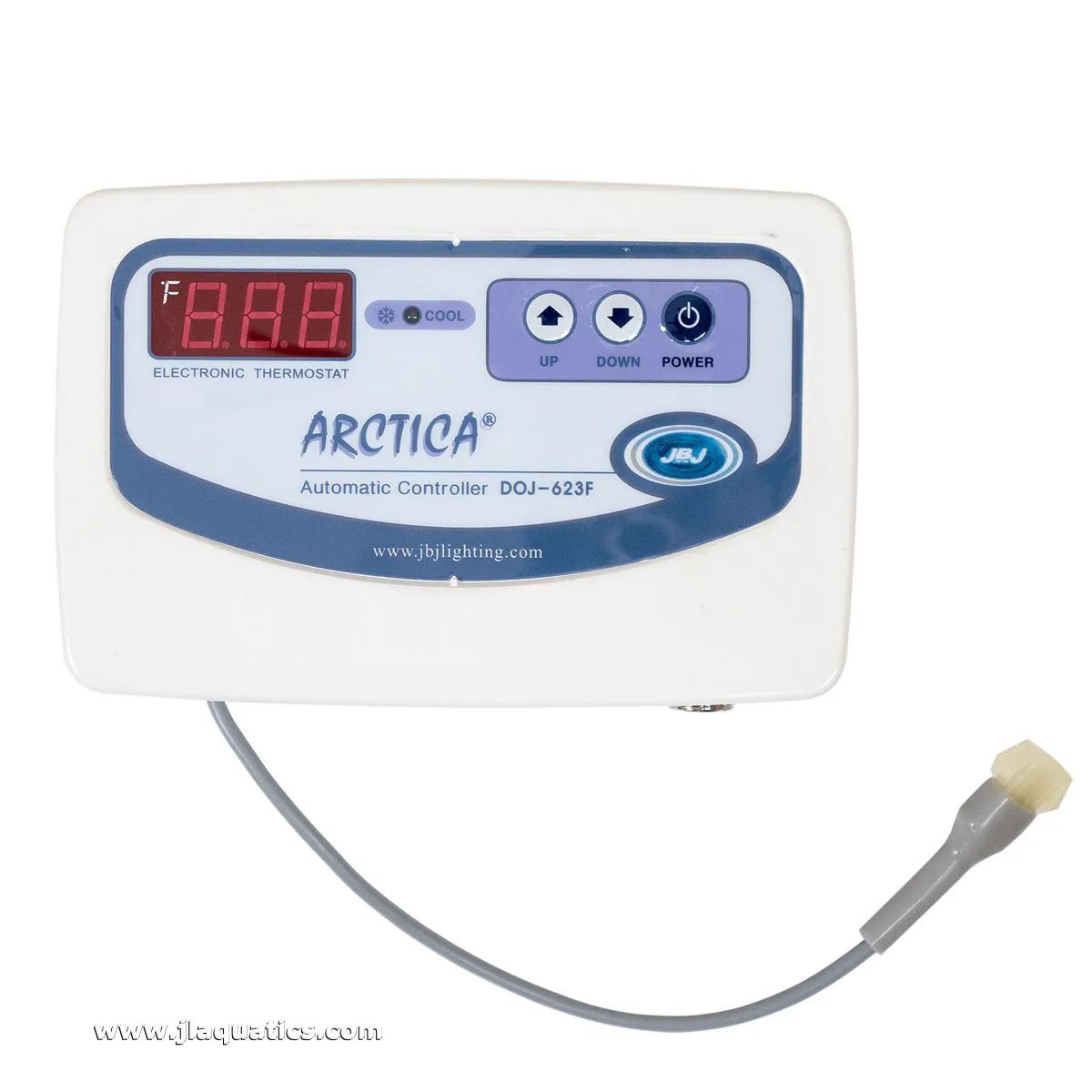

- Remote Auto IC digital LED controller: Allows temperature setting, display, calibration, and automatic cooling control.
- +/- 1 degree Fahrenheit accuracy: Helps maintain stable water temperature in demanding livestock systems.
- Thermal chip protection: Helps prevent heat exchanger freezing during abnormal low-flow or control-failure conditions.
- Smart-chip memory: Stores and restores temperature-control settings after power interruption.
- 1-1/4 inch PVC union connections: Supports higher-flow plumbing requirements for large systems.
- Commercial-grade fittings: Designed for secure, high-capacity plumbing integration.
- Large-system flow capacity: Designed for 1920 to 2880 GPH operating flow.
- Freshwater and saltwater compatible: Suitable for reef systems, marine holding systems, freshwater displays, and coldwater aquatic applications.
- Water pump not included: Requires a properly sized pump or system loop capable of meeting the required flow rate.

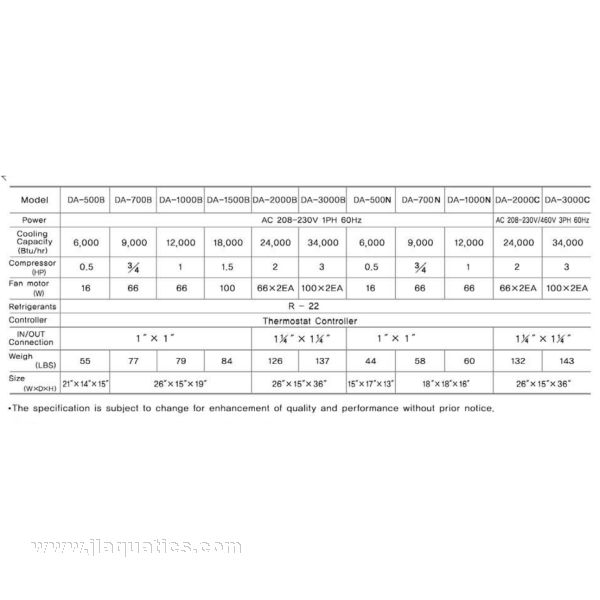

JBJ Arctica 3HP Commercial Chiller Specifications
- Brand: JBJ
- Series: Arctica Commercial Series
- Model: DA-3000
- Product type: Commercial inline aquarium chiller
- Compressor rating: 3 HP
- Recommended aquarium size: 800 gallons
- Maximum aquarium size: Up to 3000 gallons depending on heat load, ambient temperature, and desired temperature drop
- Cooling capacity: 36000 BTU
- Power: 230V / 16 amps
- Required power: 200VAC to 240VAC
- Heat exchanger: Titanium Helix
- Flow rate: 1920 to 2880 GPH
- Connection size: 1-1/4 inch PVC unions
- Controller type: Single-stage digital temperature controller
- Temperature accuracy: +/- 1 degree Fahrenheit
- Cord included: No
- Plug included: No
- Dimensions: 26 x 15 x 36 inches
- Weight: 138 lb
- Warranty: 1 year limited warranty
- Application: Freshwater and saltwater aquariums
- Water pump: Not included
Sizing and Installation Notes for the JBJ Arctica 3HP Commercial Chiller
The 3HP model should be selected for systems where total water volume, heat-producing equipment, room temperature, ventilation, and required temperature drop justify the highest commercial Arctica capacity. Proper pump sizing is critical, and the installed flow rate should remain within the operating range after head pressure and plumbing restrictions are accounted for. This model requires 200VAC to 240VAC power and direct electrical installation by a qualified electrician according to local code.
Directions
Place the chiller in a dry, level, well-ventilated equipment area with adequate clearance for intake, exhaust, and service access. Connect the inlet and outlet using the 1-1/4 inch PVC union fittings and a pump or system loop that delivers 1920 to 2880 GPH after plumbing loss. Circulate water through the chiller before powering the unit, inspect all plumbing for leaks, and complete electrical installation according to local code. Set the desired temperature on the digital controller, keep the condenser clean, and maintain plumbing and flow regularly to preserve cooling performance.
What's Included
- JBJ DA-3000 3HP 230V Commercial Chiller
- Remote Auto IC digital LED temperature controller
- 1-1/4 inch PVC union connection fittings
- Manufacturer documentation
