Ecotech Vectra L2 Water Pump

Overview of Ecotech Vectra L2 Water Pump

The Ecotech Vectra L2 Water Pump is EcoTech Marine's high-flow controllable DC pump for large reef aquariums, demanding return systems, and closed-loop circulation applications. With up to 3,100 GPH of flow, Mobius-ready wireless control, QuietDrive technology, and flexible inline or submersible installation, the Vectra L2 is built for aquarists who want strong system turnover with precise control instead of relying on inefficient flow-restricting valves.

As a return pump, the Vectra L2 can be calibrated to the aquarium's plumbing so the system operates around the actual overflow and sump conditions. As a closed-loop pump, it can provide dynamic flow patterns for larger marine systems while keeping the pump externally or internally installed depending on the layout.

Ecotech Vectra L2 Water Pump Features

• High-flow DC performance: Delivers up to 3,100 GPH / 11,500 LPH for large aquariums, high-turnover sump systems, and closed-loop flow applications.
• Mobius-ready control: Allows wireless programming, pump adjustment, schedules, and system control through the Mobius app environment.
• QuietDrive technology: Uses EcoTech's QuietDrive driver platform for controlled DC motor performance with reduced operating noise.
• Return or closed-loop operation: Can be configured as a return pump or used for closed-loop circulation depending on aquarium plumbing needs.
• Inline or submersible installation: Sealed motor and magnetic drive design allow the pump to be installed externally or submerged in the sump.
• QuickCouple fittings: Included couplers make installation, removal, cleaning, and service easier than fixed plumbing connections.
• Rotatable volute: Pump head can be rotated to help match the plumbing layout and reduce awkward installation angles.
• Return pump calibration: Smart calibration helps tune flow to the aquarium and can create a neutral flow condition during feed mode.
• Feed Mode and Speed Lock: Feed Mode temporarily idles flow for feeding, while Speed Lock helps prevent accidental changes to the pump setting.
• Battery Backup compatible: Compatible with EcoTech Battery Backup accessories for emergency flow support when properly configured.

Specifications for Ecotech Vectra L2 Water Pump

• Model: Vectra L2
• UPC: 653341196828
• Product Type: Controllable DC aquarium water pump
• Maximum Flow: 3,100 GPH / 11,500 LPH
• Maximum Head Pressure: 21.5 ft / 6.5 m
• Wireless Control: Included
• Footprint: 5 in. x 8.5 in. / 126.8 mm x 215.15 mm
• Input Fitting: 1.5 in. / 38 mm
• Output Fitting: 1.25 in. / 31.75 mm
• Power Supply: 150W
• Installation Options: Inline or submersible
• Operating Configurations: Return pump or closed-loop pump

Compatibility/Notes for Ecotech Vectra L2 Water Pump

• Best suited for larger aquariums, higher-flow return systems, basement sump layouts, manifold setups, and closed-loop applications where the additional L2 capacity is required.
• Actual flow will vary based on plumbing diameter, head height, elbows, valves, manifolds, outlets, and installation layout.
• Input and output fittings are compatible with standard PVC pipe.
• For best performance when using EcoTech Battery Backup in return pump configuration, a Vectra Battery Backup Booster may be required.
• Battery Backup, Battery Backup Booster, plumbing pipe, valves, unions, fittings, and aquarium controller accessories are sold separately unless otherwise stated.
• Choose pump size based on required turnover after head pressure and plumbing loss, not only on maximum flow rating.

Directions for Ecotech Vectra L2 Water Pump

• Confirm plumbing size, sump clearance, head height, and desired turnover before installation.
• Install the pump inline or submersed according to EcoTech's instructions and the aquarium's plumbing design.
• Use the included QuickCouple fittings to allow easier removal for cleaning and service.
• Rotate the volute if needed to better align the pump with the plumbing route.
• Configure the pump for return pump or closed-loop operation before regular use.
• Calibrate the pump after installation so flow is matched to the aquarium and overflow system.
• Inspect and clean the pump regularly to maintain flow performance and reduce buildup.

What's Included

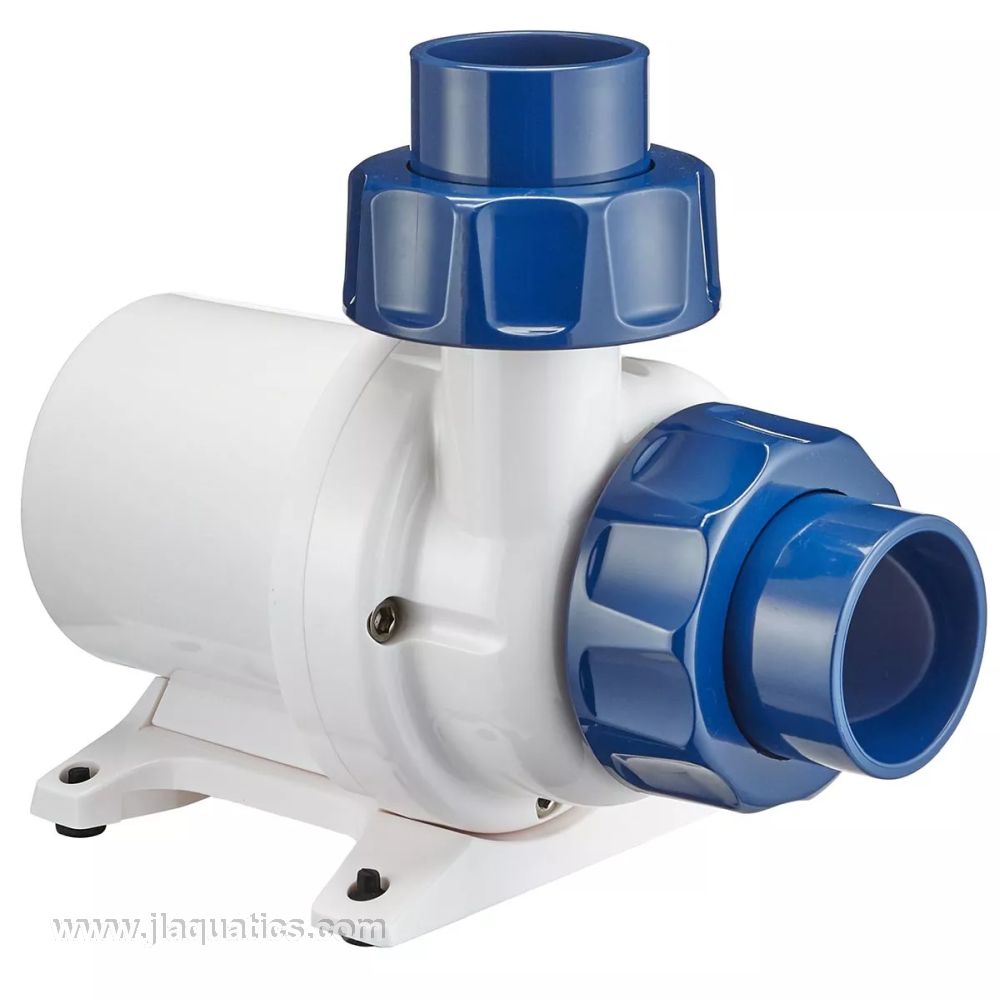

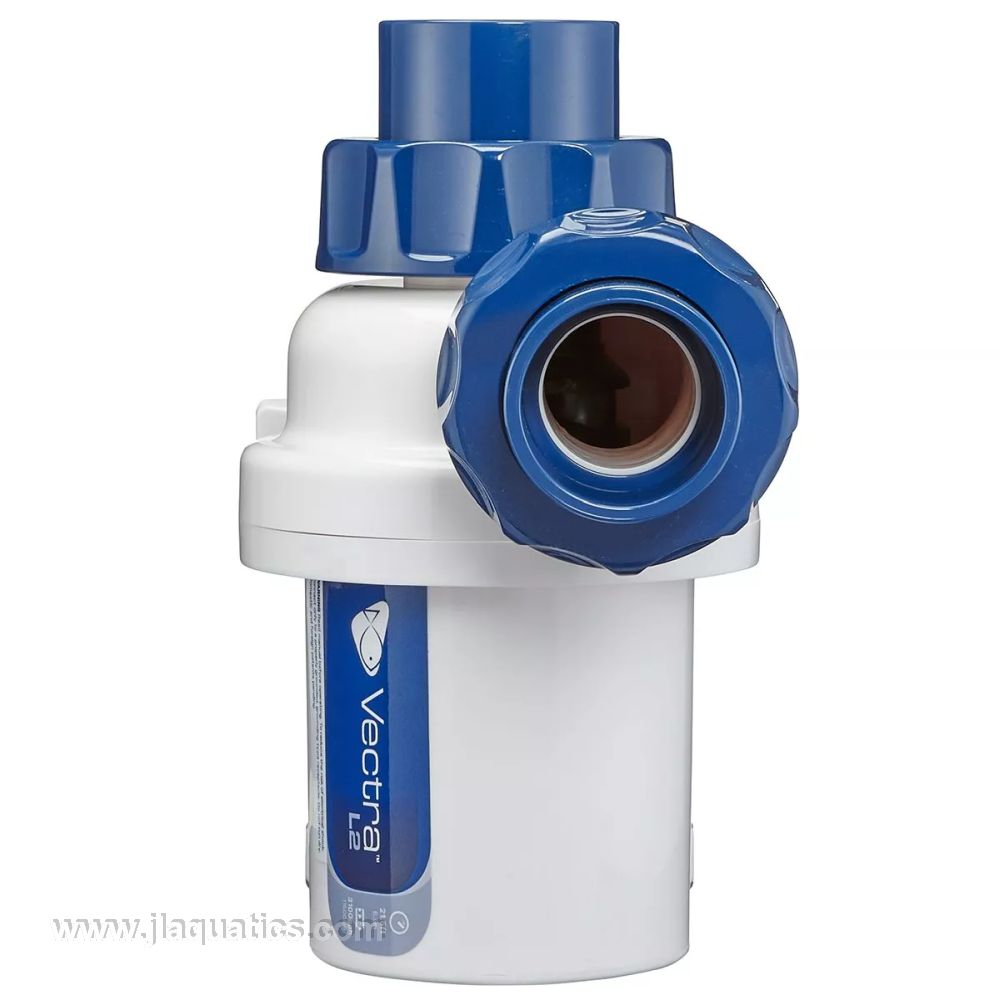

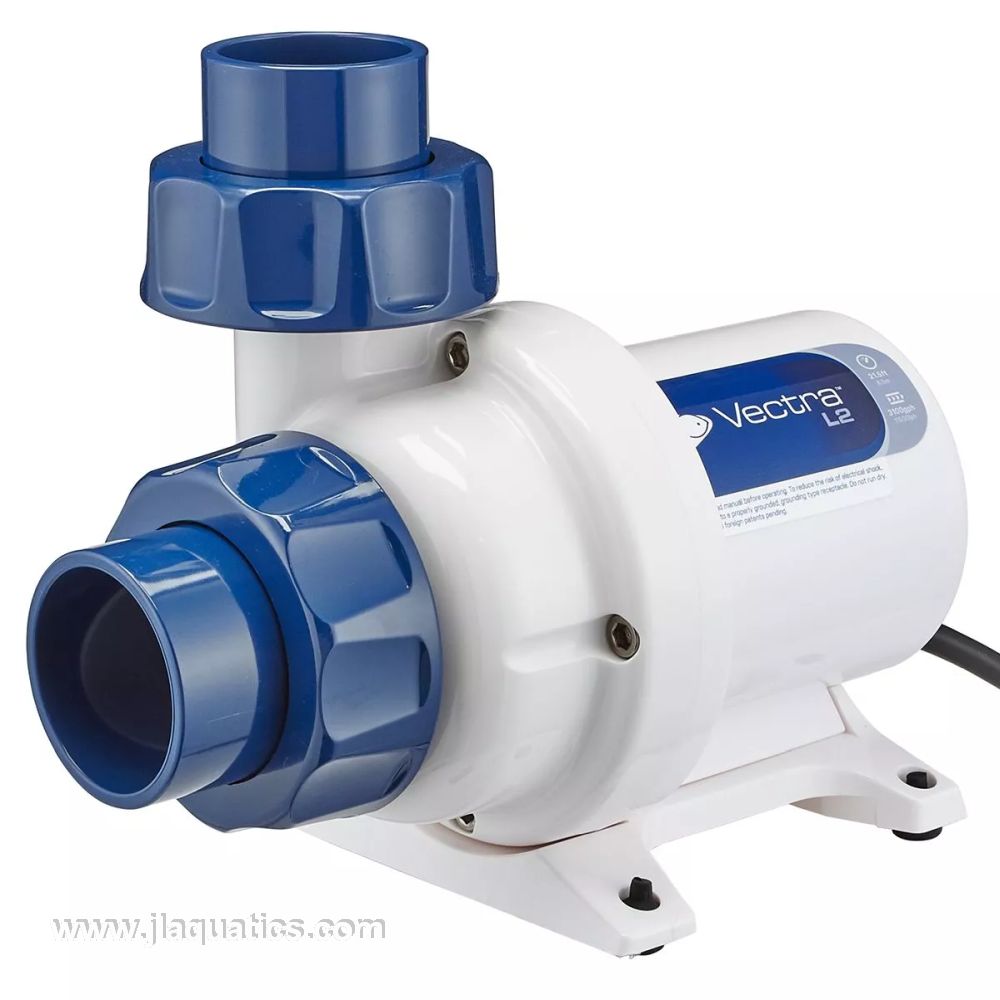

• 1 x Vectra L2 Mobius Ready DC Pump

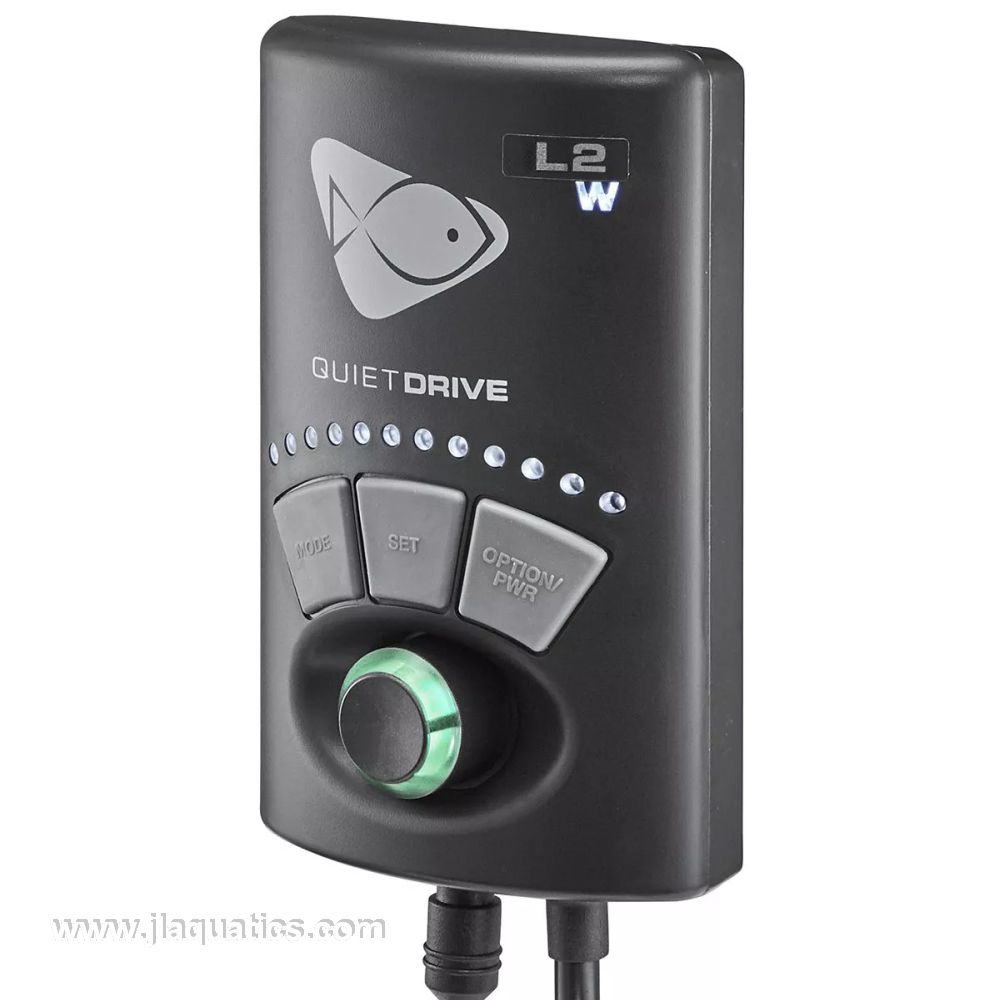

• 1 x Vectra QuietDrive Driver
• 1 x Driver Mounting Bracket
• 1 x Power Supply
• 1 x Input Quick Coupler
• 1 x Output Quick Coupler
• 1 x Instruction Manual
