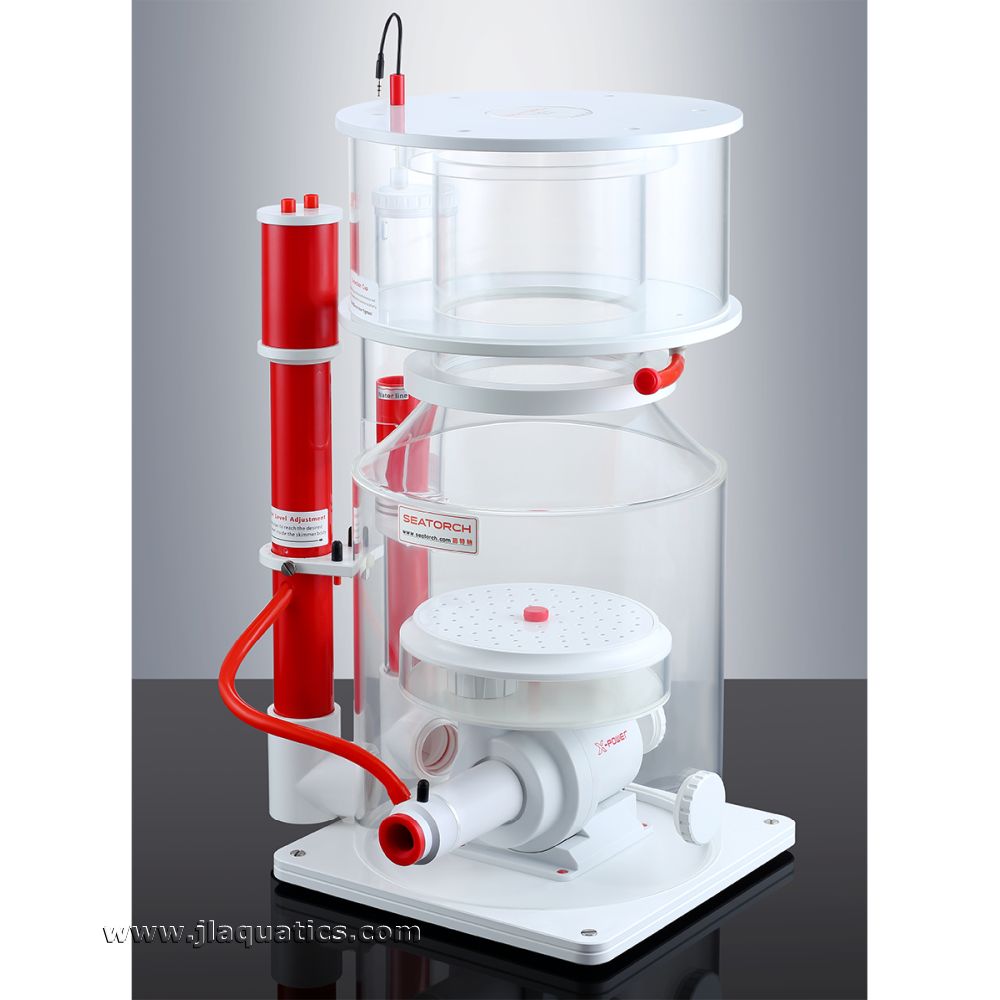

Seatorch Ultra Marine 220IN Protein Skimmer
Overview of the Seatorch Ultra Marine 220IN Protein Skimmer

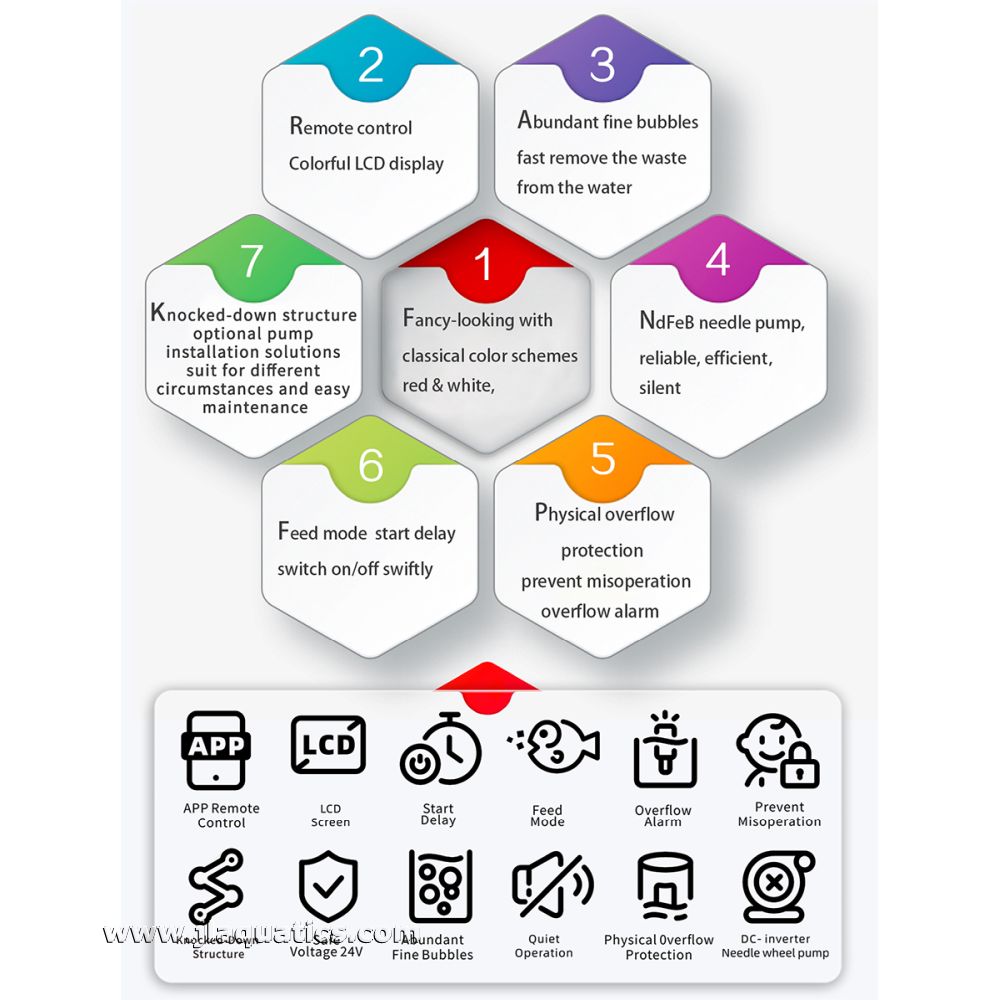

The Seatorch Ultra Marine 220IN Protein Skimmer is an advanced DC-controlled in-sump protein skimmer engineered for high efficiency nutrient export in large and high bioload reef aquariums. Built around the X-Power DC inverter needle wheel pump platform, the 220IN combines precision air draw regulation, intelligent overflow monitoring, integrated LCD control, and app-based remote management into a structurally rigid knock-down acrylic body designed for long-term stability and serviceability. Designed for reef systems demanding controlled performance, quiet operation, and reliable waste removal, the 220IN delivers consistent fine bubble production and efficient organic removal across a broad operating range.Advanced Engineering Features of the Seatorch Ultra Marine 220IN Protein Skimmer
- X-Power DC Inverter Needle Wheel Pump: High efficiency 24V DC pump platform delivers controlled air-water mixing while reducing power consumption and acoustic output compared to traditional AC skimmer pumps.
- NdFeB Rotor Needle Wheel Assembly: Neodymium magnet rotor provides enhanced torque stability and long-term performance durability under higher bioload conditions.
- Abundant Fine Bubble Production: Precision needle impeller and diffuser chamber design maximize air fragmentation, increasing contact surface area for enhanced protein adsorption and export efficiency.
- Intelligent Overflow Probe and Monitor: Integrated overflow detection system automatically monitors collection cup level and triggers protective responses to prevent accidental sump overflow events.
- Physical Overflow Protection and Alarm System: Built-in safeguards reduce risk of misoperation while maintaining system security during feed mode or fluctuating water levels.
- Integrated Diffuser Chamber: Engineered bubble plate distribution system promotes uniform upward flow and stable foam head formation within the reaction chamber.

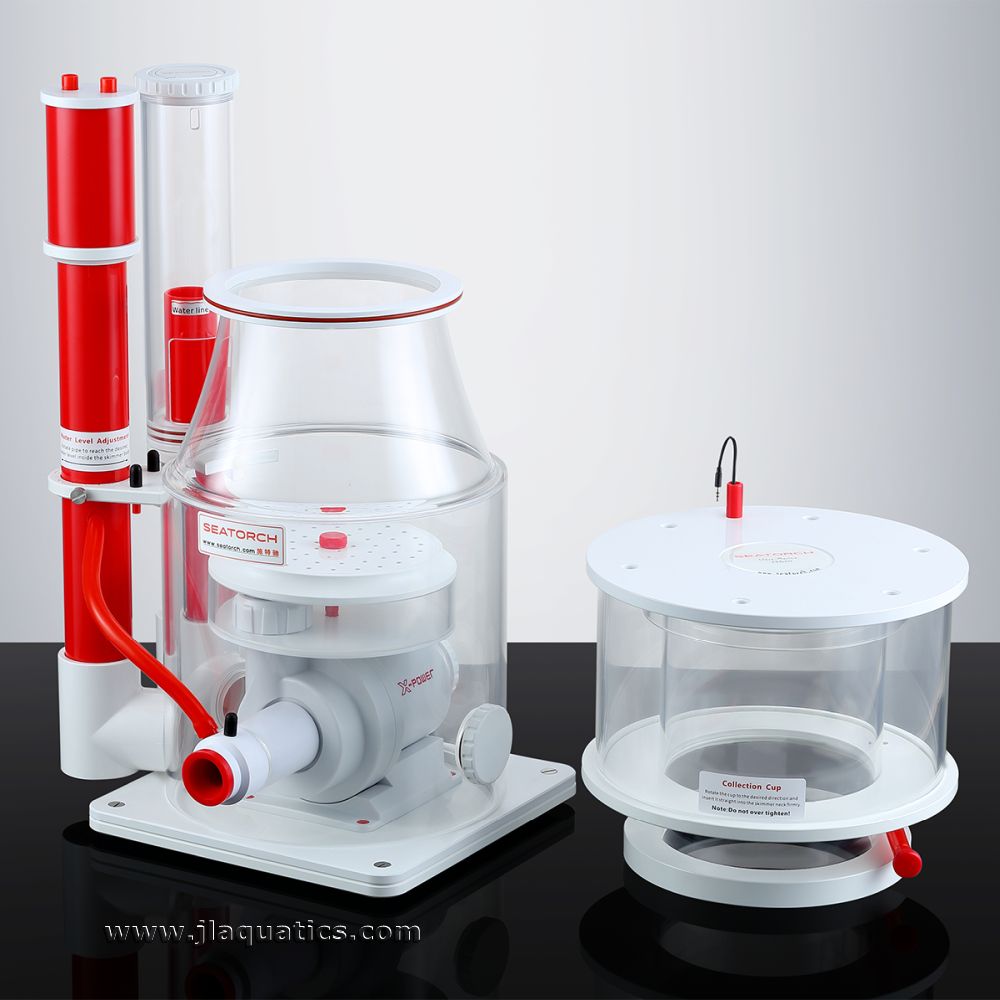

- Knock-Down Structural Design: Modular acrylic construction allows simplified assembly, easier maintenance access, and long-term serviceability without compromising structural rigidity.
- Quick-Disassembly Collection Cup: Large capacity cup with drain port enables simplified cleaning and controlled waste removal.
- Safe 24V Operating Voltage: Low voltage DC platform enhances operational safety and energy efficiency within sump environments.
- Quiet Operation Architecture: Pump isolation and controlled airflow pathways reduce mechanical resonance and vibration transmission.
Smart Control and App Features of the Seatorch Ultra Marine 220IN Protein Skimmer
- LCD Digital Controller: Color display interface provides real-time pump speed monitoring and operational adjustments.

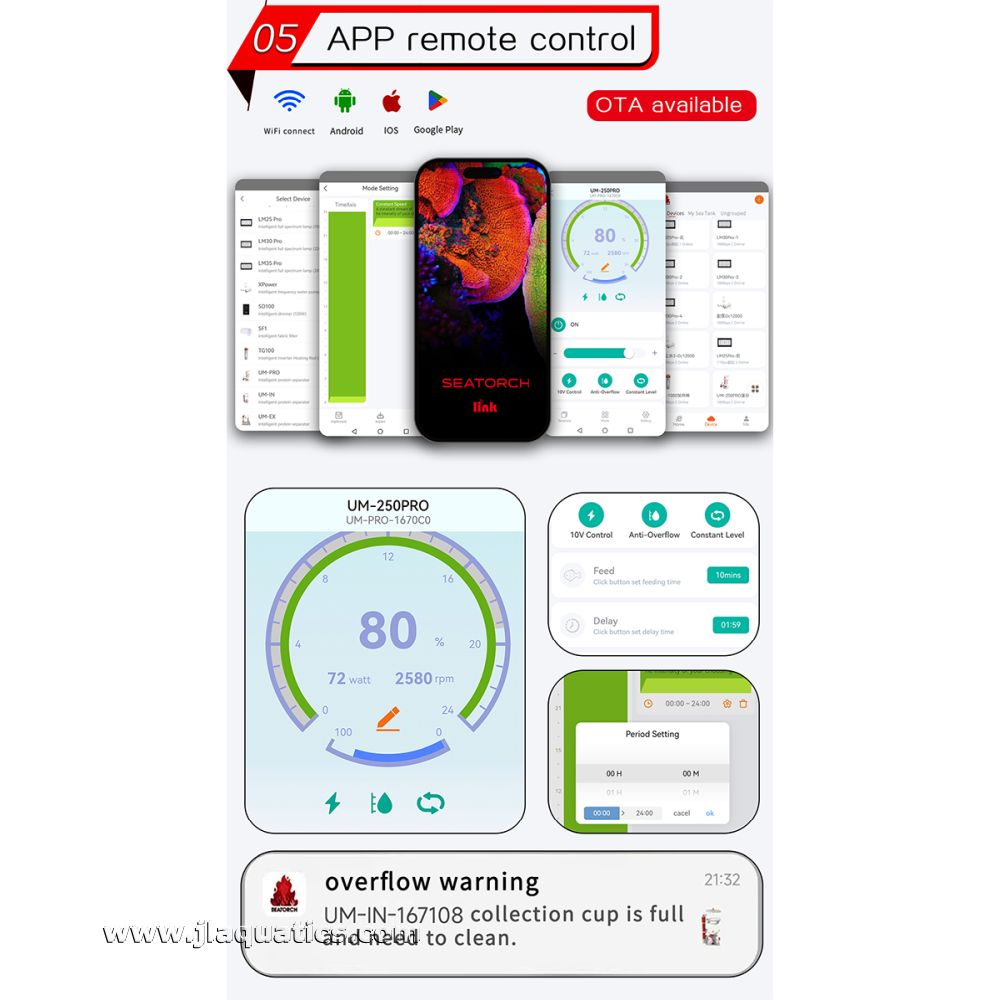

- WiFi App Remote Control: Compatible with Android and iOS devices for wireless monitoring and parameter control.
- OTA Firmware Update Support: Over-the-air update capability allows system firmware improvements without hardware replacement.
- 10V Speed Control Interface: Precision adjustment of pump performance for wet or dry skim tuning.
- Feed Mode Delay Function: Temporarily reduces skimmer activity during feeding cycles to prevent excessive overflow and maintain stability.
- Constant Level Monitoring: Digital management maintains consistent performance despite sump water fluctuations within ideal range.
Seatorch Ultra Marine 220IN Protein Skimmer Specifications
- Aquarium Volume Rating: 1000-1500 L (264-396 US gal)
- Air Intake: 1500 L/H
- Water Intake: 6000 L/H
- Power Consumption: 60W

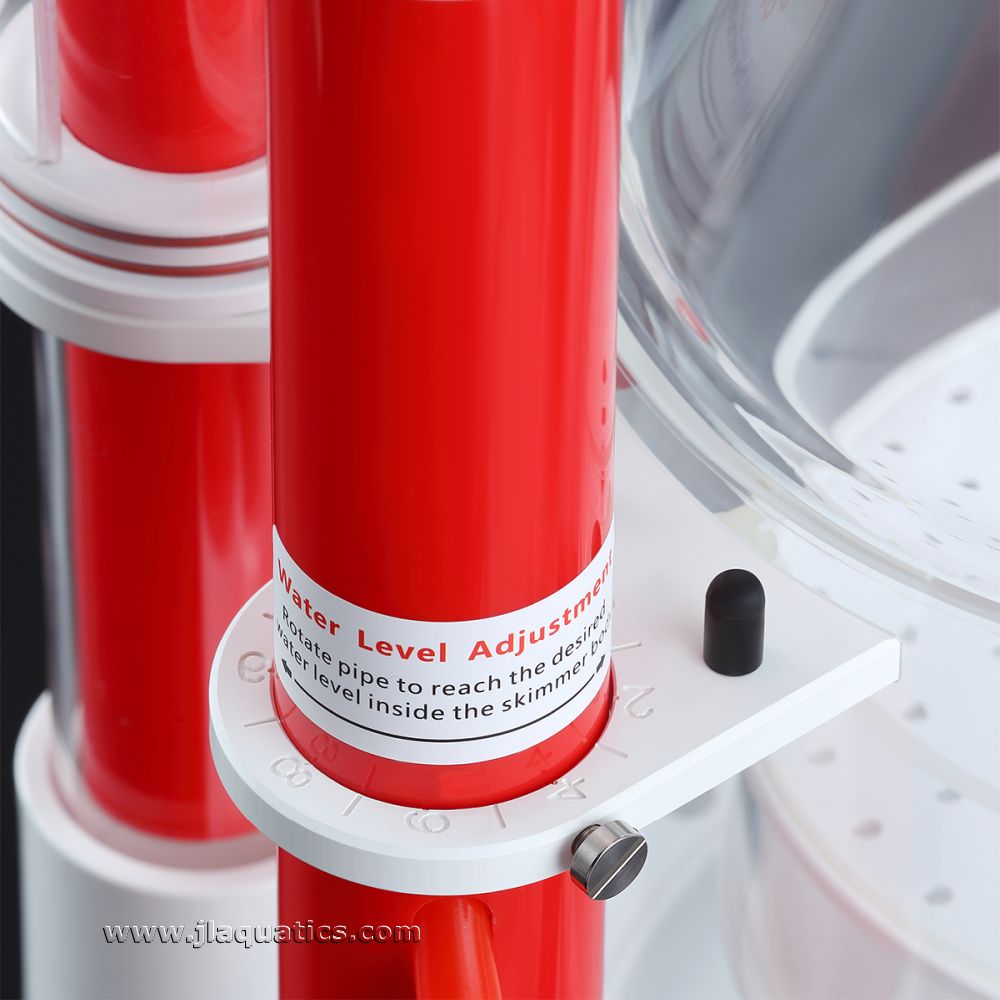

- Ideal Water Level: 220-260 mm (8.66-10.24 in)
- Unit Size Option 1: 260 x 300 x 650 mm (10.24 x 11.81 x 25.59 in)
- Unit Size Option 2: 240 x 320 x 650 mm (9.45 x 12.60 x 25.59 in)
Directions
Install the Seatorch Ultra Marine 220IN Protein Skimmer in a sump chamber maintaining a stable water depth between 220 and 260 mm. Connect the 24V DC pump controller and power supply. Adjust pump speed using the LCD controller or mobile application to achieve desired foam consistency. Activate feed mode during heavy feeding periods as required. Clean collection cup regularly to maintain optimal nutrient export performance.What’s Included

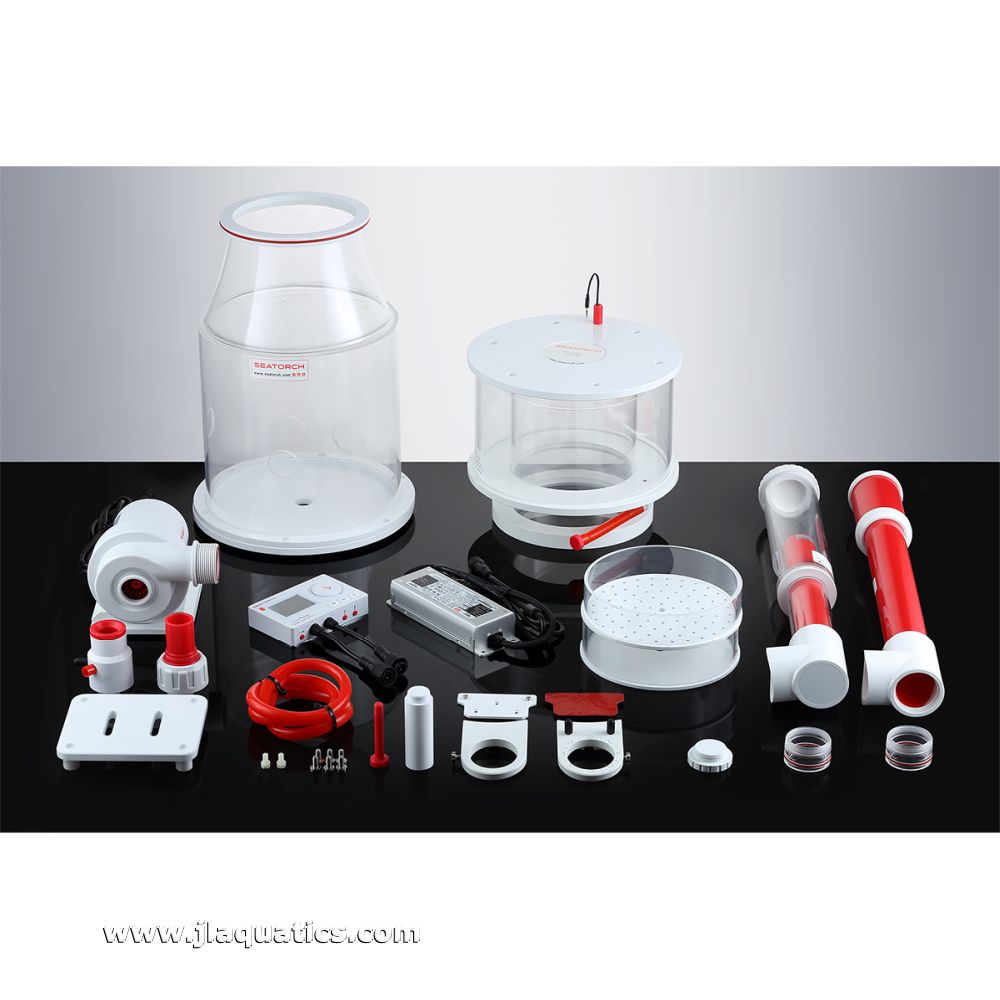

- Seatorch Ultra Marine 220IN Skimmer Body
- X-Power DC Needle Wheel Pump
- LCD Digital Controller
- 24V Power Supply
- Overflow Probe Assembly
