Seatorch LM-12 Pro LED Light

Overview of the Seatorch LM-12 Pro LED Light

The Seatorch LM-12 Pro LED Light is a 50 watt full spectrum reef lighting system engineered for nano and compact reef aquariums requiring precise spectral control, uniform optical distribution and intelligent wireless programming. Built around Cree and SemiLED diode architecture with second generation hemispherical TIR optics, the LM-12 Pro delivers controlled PAR output across a 45 x 45 cm coverage area while maintaining thermal stability through an advanced aluminum heat dissipation system.

Advanced Features of the Seatorch LM-12 Pro LED Light

• 50 Watt Controlled Output: Provides stable PAR suitable for SPS, LPS and soft coral systems in nano reef environments with measured performance of 140-160 umol at 45 cm water depth.
• Seven Independent Spectrum Channels: Individually adjustable Cool White, Royal Blue, Blue, Red, Green, Purple and UV channels allow precision coral coloration tuning and photosynthetic optimization.
• Premium Diode Platform: Cree LEDs power primary spectrum channels A through E while SemiLED components drive the 415nm and 405nm violet and UV bands for spectral balance.
• Full Spectrum Coverage 405nm-6500K: Includes targeted 450-465nm and 465-485nm blue peaks for zooxanthellae efficiency and enhanced fluorescence response.

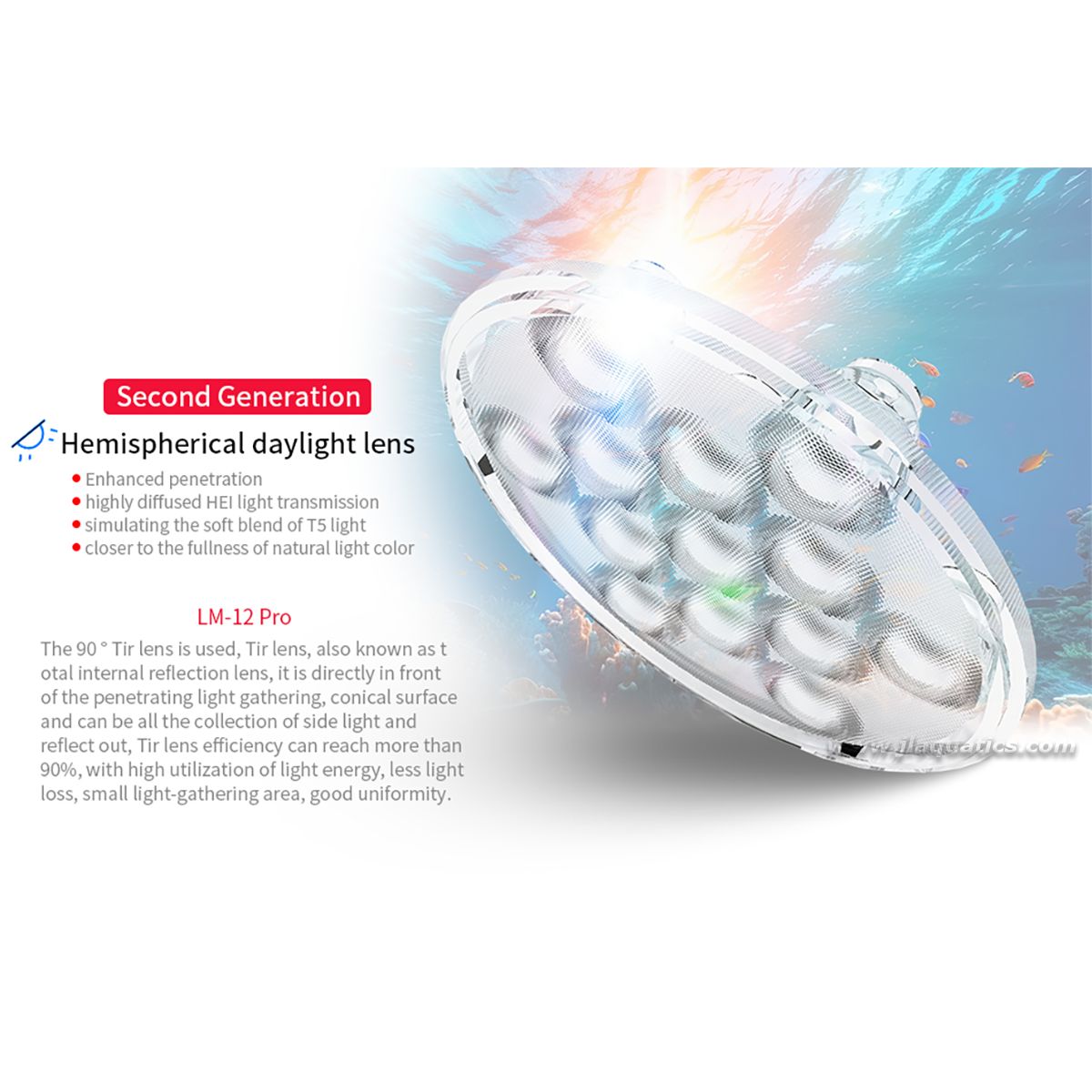

• Second Generation 90 Degree Hemispherical TIR Lens: Internal total reflection optics provide greater than 90 percent transmission efficiency, improved penetration and reduced light loss while maintaining uniform distribution across the coverage area.
• Coverage Footprint: Designed for approximately 45 x 45 cm reef coverage with optimal performance at depths up to 45 cm.

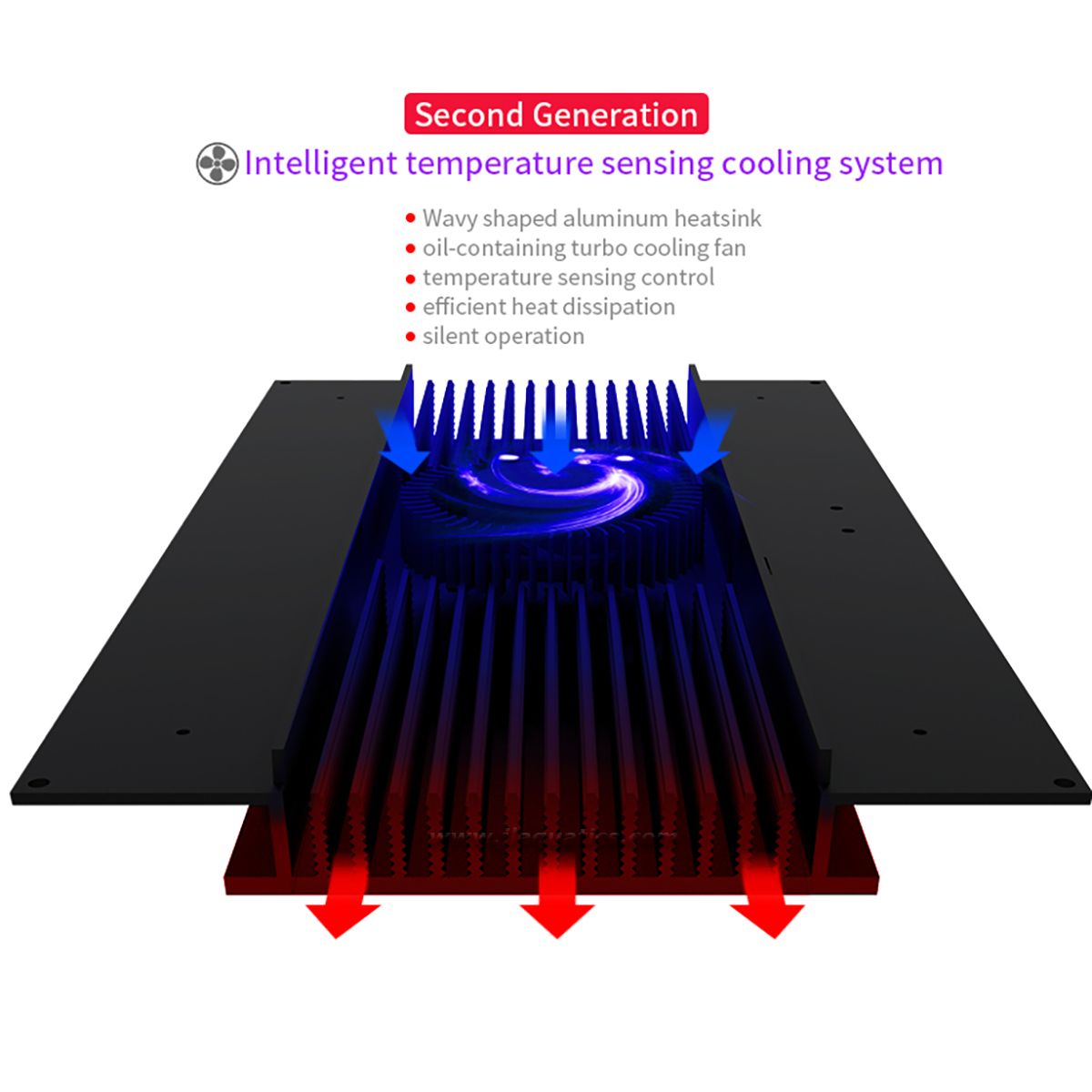

• Intelligent Temperature Sensing Cooling System: Wavy aluminum heat sink combined with oil-containing turbo cooling fan and temperature sensing regulation ensures efficient heat dissipation and quiet operation.
• Meanwell Power Supply Integration: External high reliability power supply provides stable voltage regulation for consistent output.

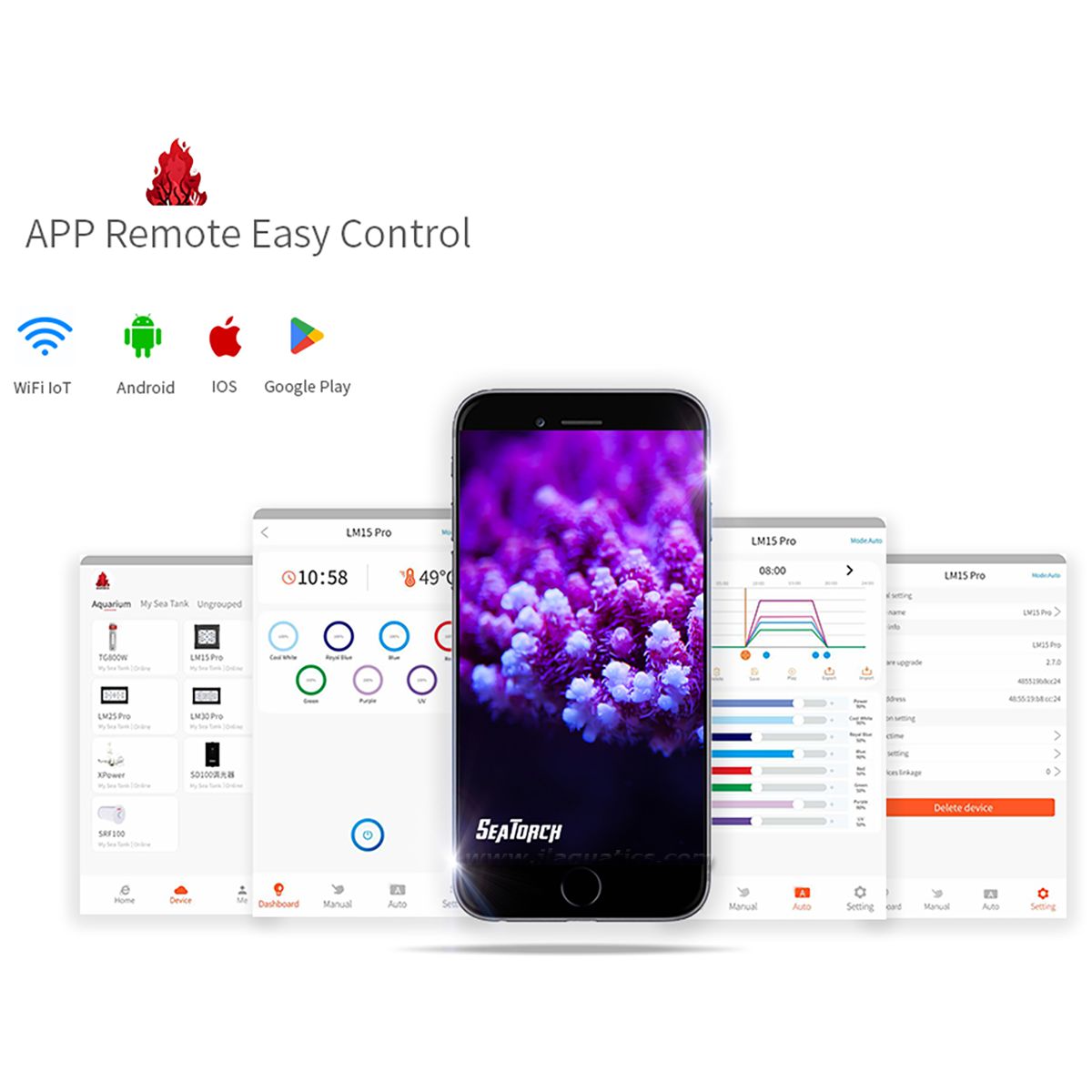

Smart Control and App Features of the Seatorch LM-12 Pro LED Light

• WiFi IoT Connectivity: Direct wireless communication with iOS and Android devices without requiring external controllers.
• Local Area Network Monolight Mode: Allows a single fixture to connect directly to a mobile device within the local network for direct programming and adjustment.
• Router Remote Linkage Mode: Enables remote access and programming through a wireless router, allowing control even when not physically near the aquarium.
• Multi-Light Wireless Grouping: Supports master and sub-light configuration where a primary lamp acts as a transceiver transmitting programmed settings to secondary fixtures for synchronized operation.
• Independent Channel Intensity Sliders: Real-time percentage adjustment of each of the seven spectrum channels for precise spectral shaping.
• Custom Photoperiod Scheduling: Users can create detailed daily light schedules with multiple time points and intensity adjustments throughout the day.
• Sunrise and Sunset Simulation: Gradual ramping transitions reduce coral stress and replicate natural lighting progression.
• Spectrum Curve Visualization: In-app graphical spectrum interface allows users to visualize and fine tune channel intensity relationships.
• Preset Save and Export Function: Custom lighting profiles can be saved, exported and shared for consistent replication across multiple reef systems.

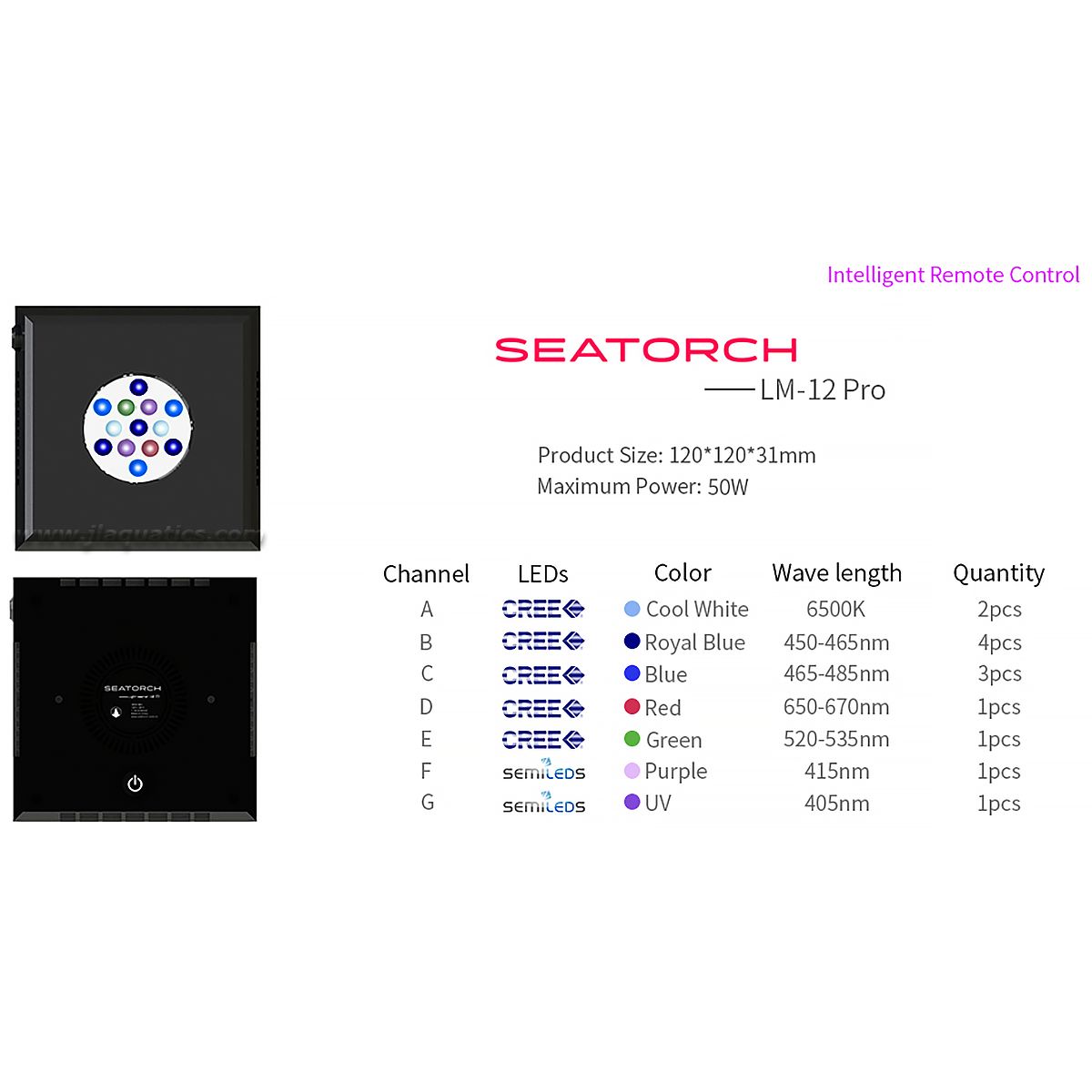

Seatorch LM-12 Pro LED Light Specifications

• Maximum Power: 50W

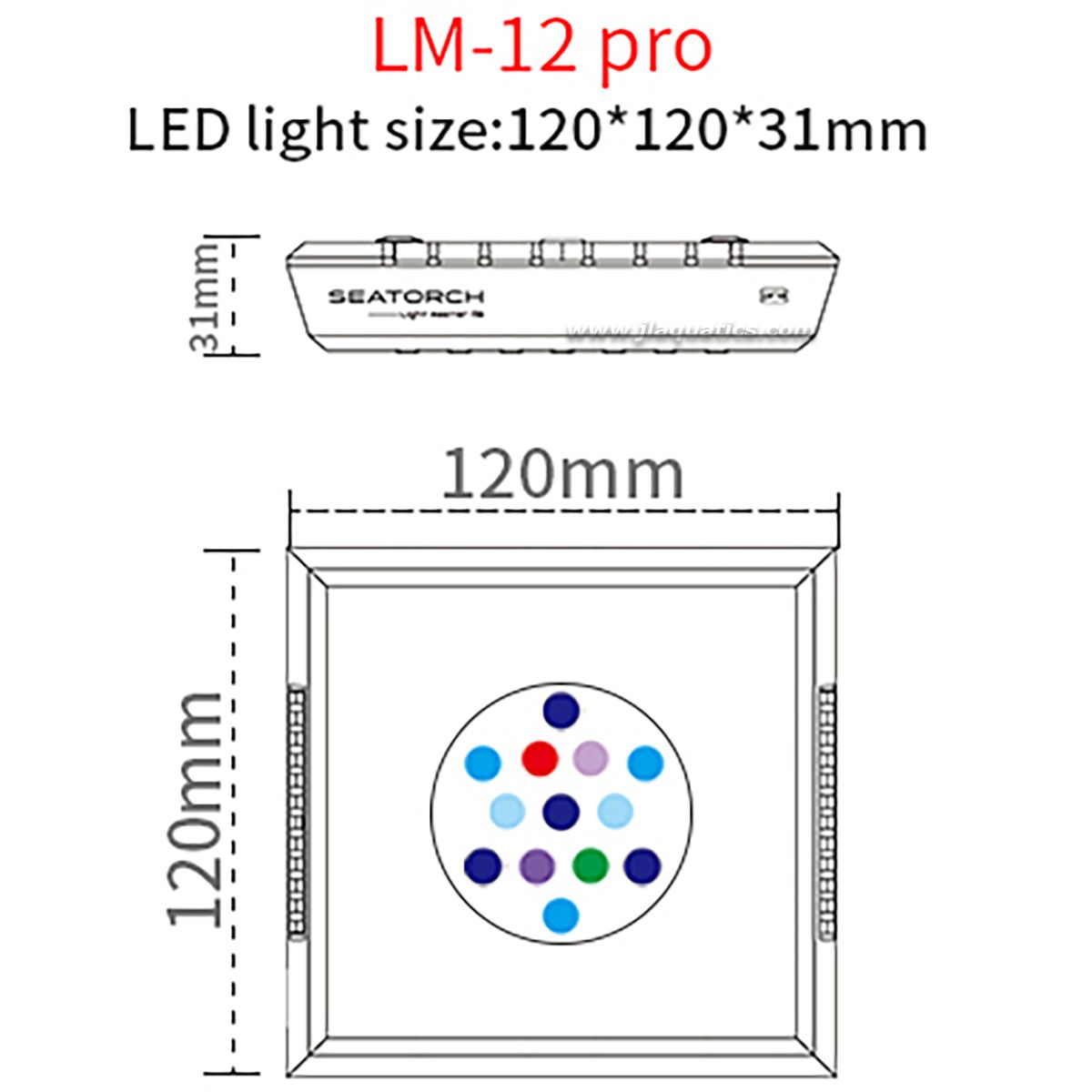

• Fixture Dimensions: 120 x 120 x 31 mm
• Coverage Area: 45 x 45 cm
• Cool White 6500K x2
• Royal Blue 450-465nm x4
• Blue 465-485nm x3
• Red 650-670nm x1
• Green 520-535nm x1
• Purple 415nm x1
• UV 405nm x1
• Lens Type: 90 Degree Hemispherical TIR
• PAR at 45 cm depth: 140-160 umol
• Wireless Modes: LAN Direct and Router Remote

Directions

Mount the Seatorch LM-12 Pro LED Light securely over the aquarium using the included bracket. Connect the fixture to the supplied Meanwell power supply. Download the Seatorch mobile application on a compatible iOS or Android device. Connect via LAN or router mode, configure individual channel intensities, establish a daily photoperiod and enable sunrise and sunset transitions. Maintain adequate airflow around the fixture for optimal cooling performance.

What’s Included

• Seatorch LM-12 Pro LED Fixture
• Mounting Bracket
• Meanwell Power Supply
