JBJ Nano Arctica E-Chiller - 20 Gallon
JBJ Nano Arctica E-Chiller - 20 Gallon
Regular price
$586.90
Sale price
$586.90
Regular price
Shipping calculated at checkout.
Hurry up, only 2 items left in stock.
✓ This item is eligible for free shipping
Couldn't load pickup availability
Free Shipping On Most Orders Over $119.00
Product Description
Product Description
JBJ Nano Arctica E-Chiller - 20 Gallon

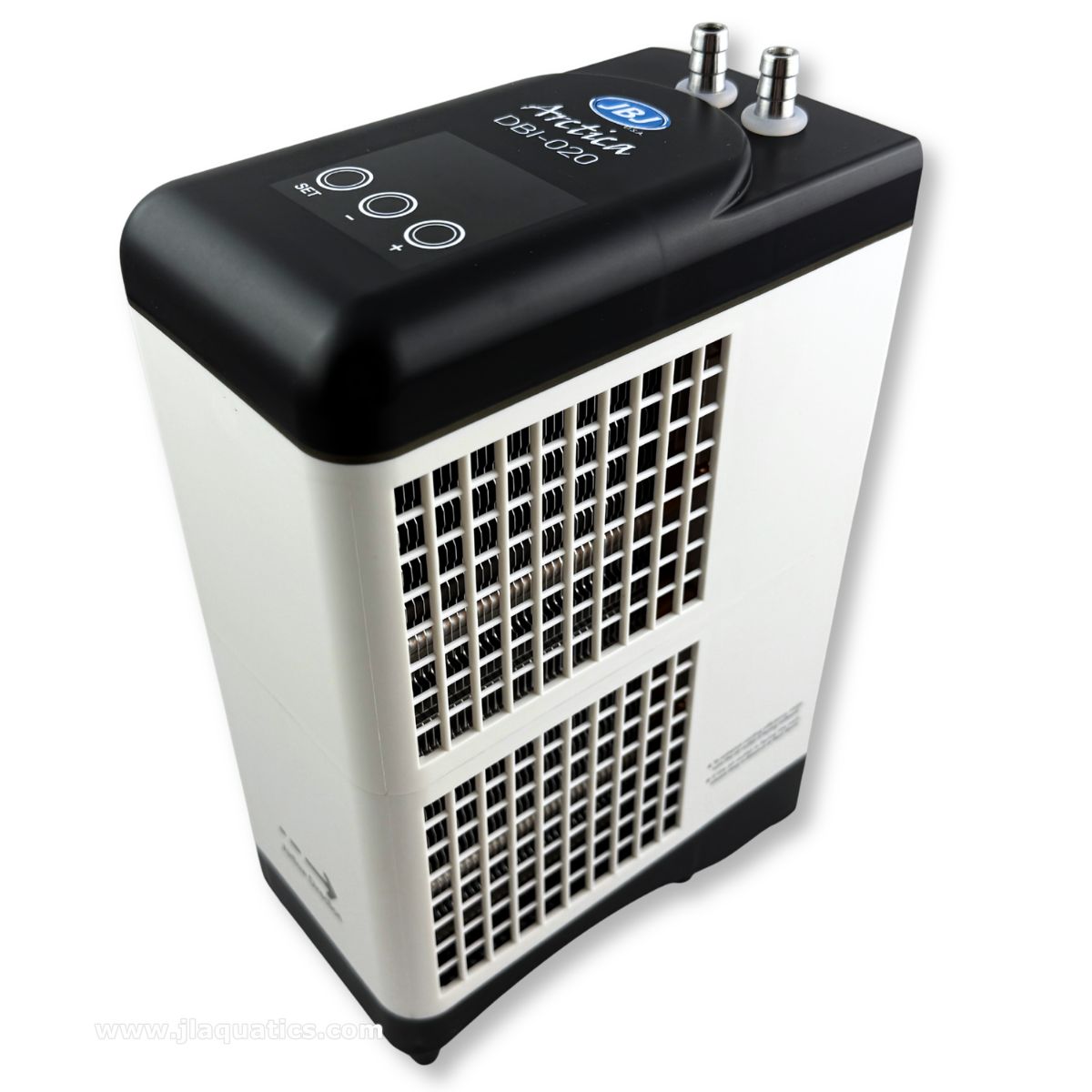

The JBJ Nano Arctica E-Chiller - 20 Gallon is a compact thermoelectric aquarium chiller designed for nano aquariums that need stable cooling without the size, vibration, or refrigerant compressor of a traditional chiller. Built for freshwater and saltwater aquariums up to 20 gallons, this compressor-free E-Chiller uses a heat sink and fan-based thermoelectric cooling system with onboard digital controls to help maintain safer water temperatures in small aquarium systems.
JBJ Nano Arctica E-Chiller Overview
The 20 Gallon Nano Arctica E-Chiller is a practical cooling solution for nano reefs, freshwater planted aquariums, shrimp tanks, axolotl systems, desktop aquariums, and other small displays affected by room heat, lighting, lids, and pump-generated warmth. Its compact external body keeps the cooling hardware outside the aquarium while water is circulated through the unit using the included pump and tubing. Under appropriate ambient conditions, the E-Chiller can lower water temperature by up to 9 to 11 degrees Fahrenheit while maintaining quiet operation and simple setup.
Features of the JBJ Nano Arctica E-Chiller
- Thermoelectric compressor-free design: Uses a semiconductor cooling system with a heat sink and fan instead of a traditional compressor.
- Designed for aquariums up to 20 gallons: Suitable for nano aquariums when properly matched to heat load and room conditions.
- Up to 9 to 11 degree temperature reduction: Helps lower aquarium water temperature depending on ambient room temperature and system heat load.

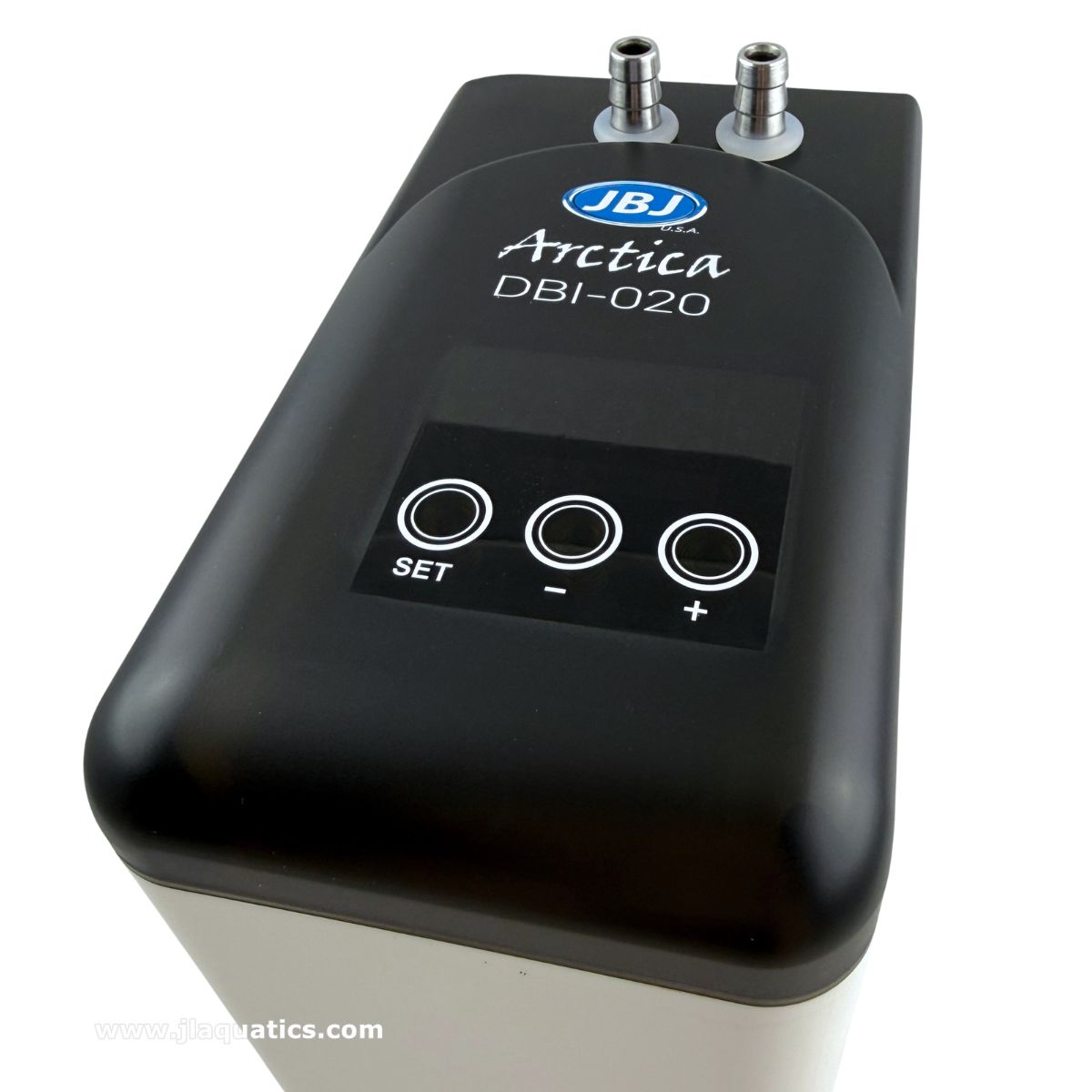

- Digital onboard controls: Integrated controls and LED display make it easy to set and monitor the target temperature.
- 60 to 94 degree Fahrenheit range: Adjustable temperature control supports a range of freshwater, reef, and specialty aquarium applications.
- Compact external cooling body: Keeps the chiller outside the aquarium while maintaining a small placement footprint.
- Quiet operation: Compressor-free design reduces vibration and makes the unit suitable for bedrooms, offices, and desktop aquarium areas.
- Freshwater and saltwater compatible: Appropriate for nano reefs, planted aquariums, shrimp tanks, small freshwater systems, and specialty livestock aquariums.

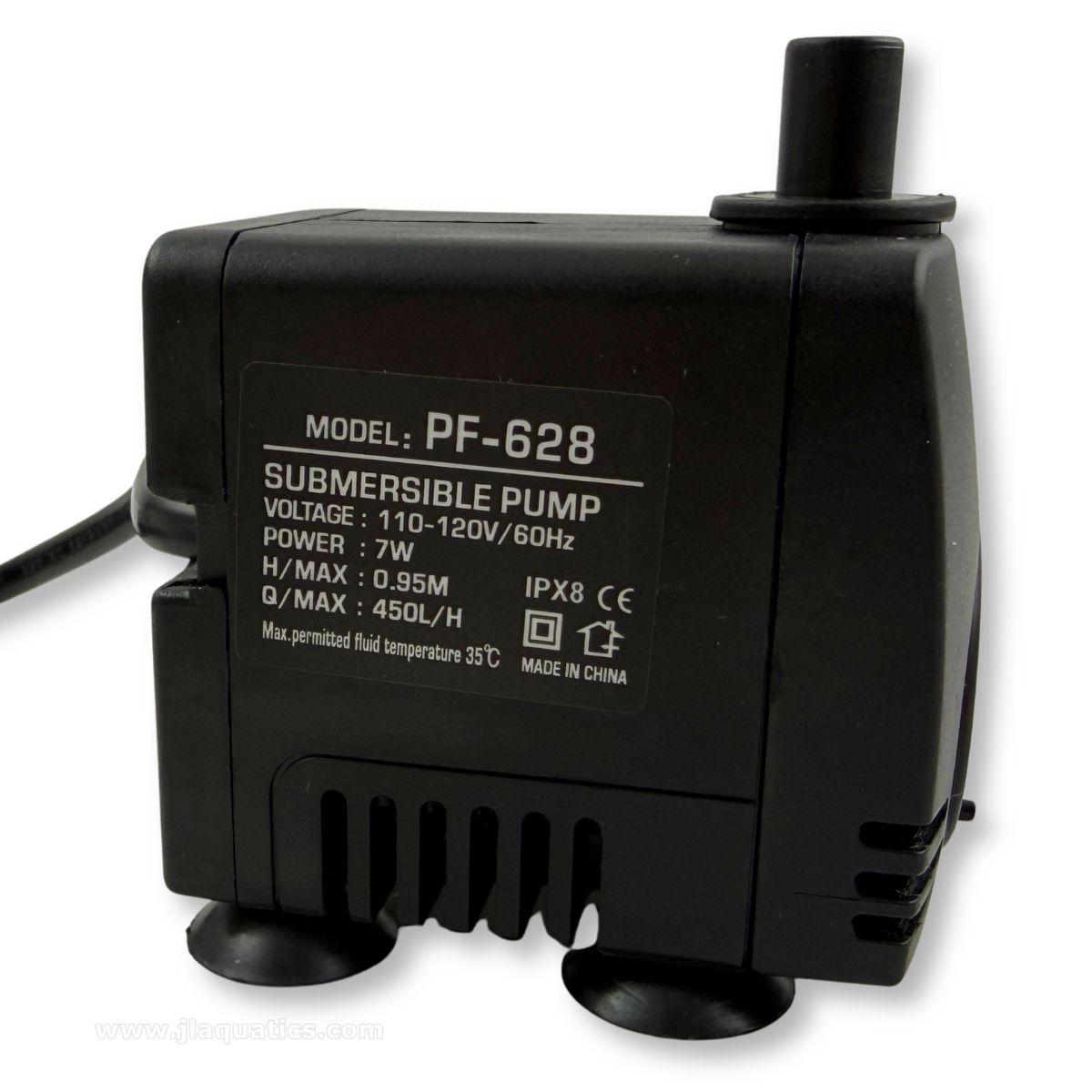

- Included 7 watt pump: Pump is sized for the unit when installed close to the aquarium with minimal head pressure.
- 12mm tubing included: Includes tubing and hardware for a clean out-of-box setup.
- Flexible mounting hardware: Includes suction cup and hang-on bracket mounting options.

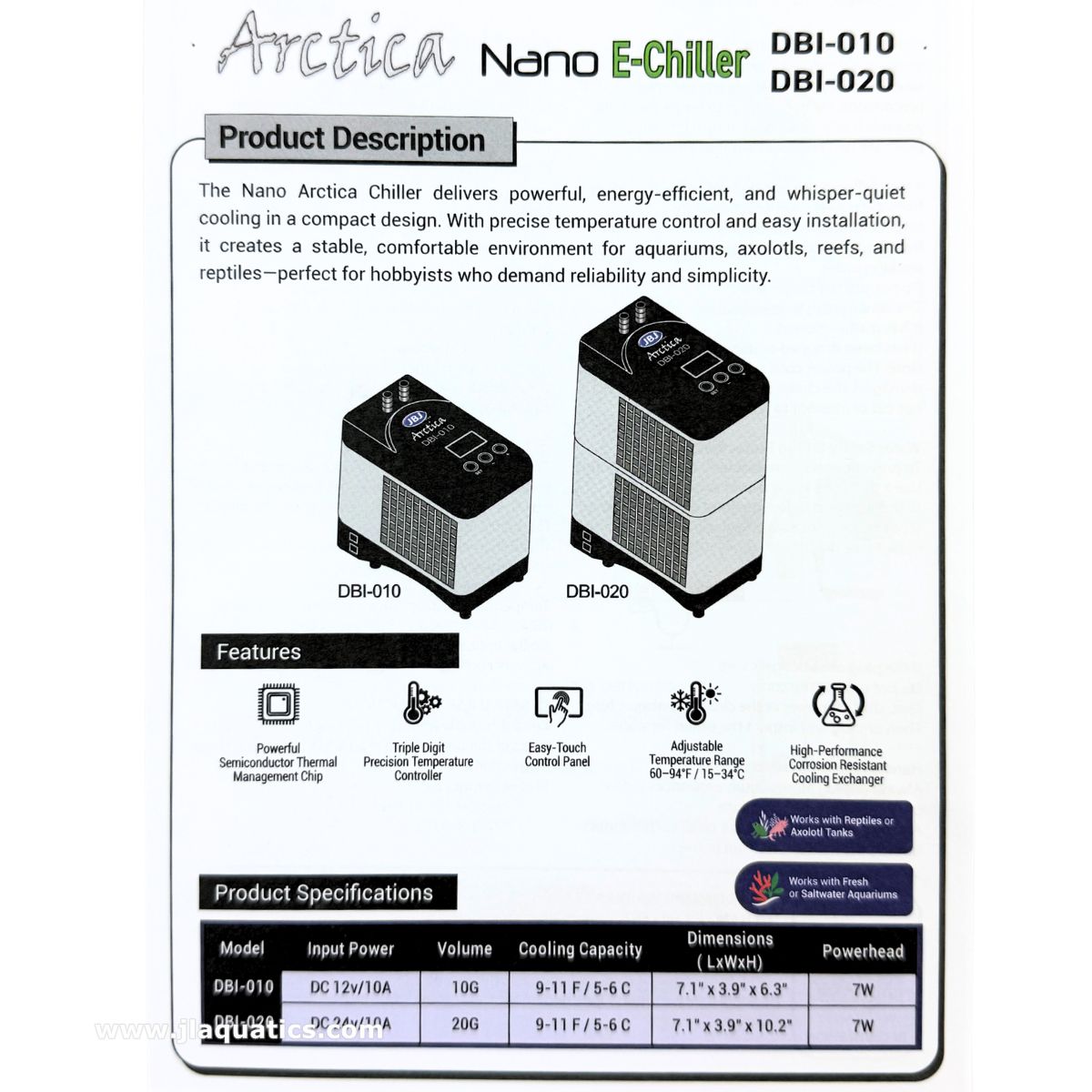

JBJ Nano Arctica E-Chiller Specifications
- Brand: JBJ
- Product type: Thermoelectric nano aquarium chiller
- Model: DBI-020 / Nano Arctica E-Chiller 20G
- Aquarium capacity: Up to 20 gallons depending on heat load, ambient temperature, and desired temperature drop

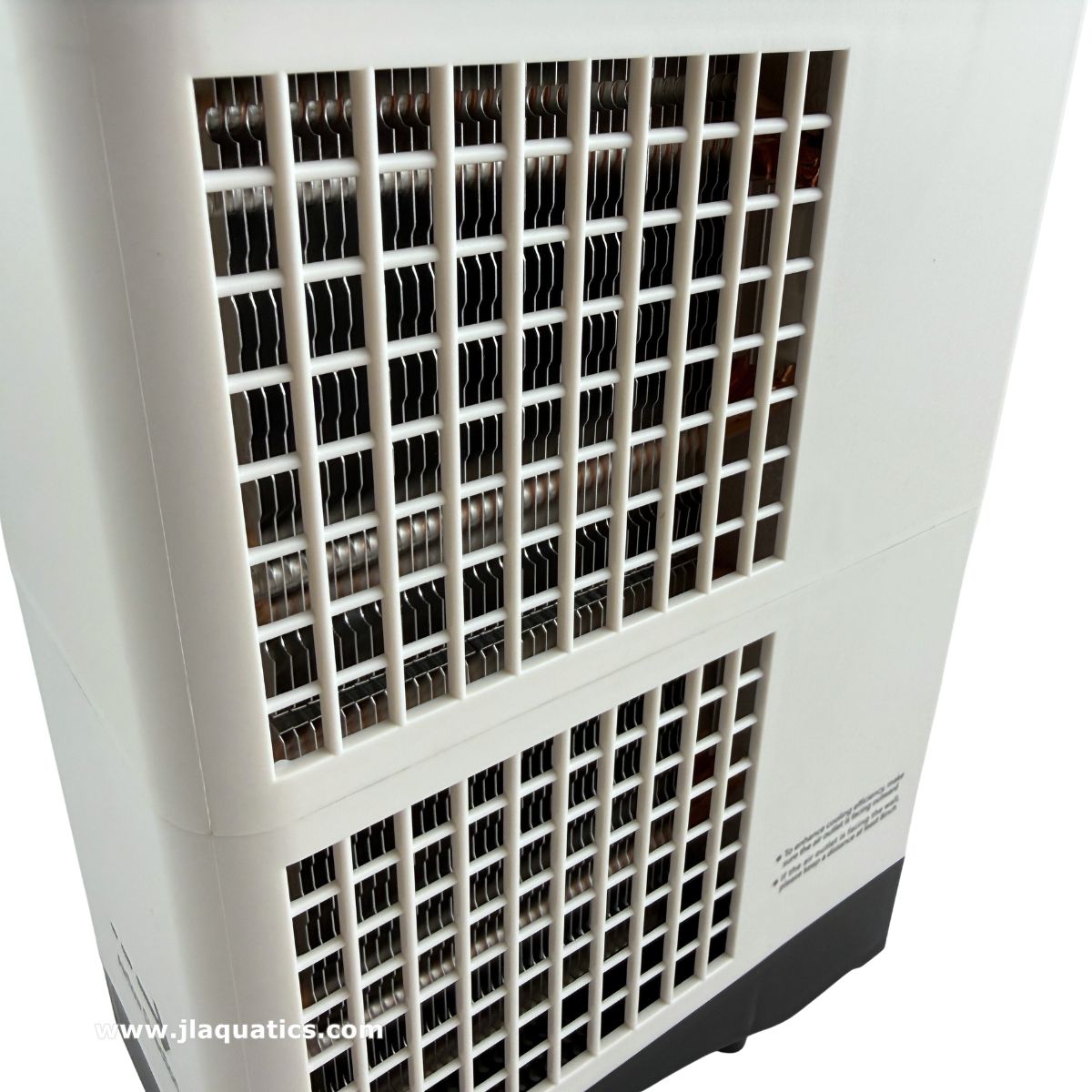

- Cooling technology: Thermoelectric heat sink and fan system
- Cooling performance: Can lower aquarium temperature by up to 9 to 11 degrees Fahrenheit depending on ambient conditions
- Temperature range: 60 to 94 degrees Fahrenheit / 15 to 34 degrees Celsius
- Temperature control: Onboard digital controls
- Display: Digital LED temperature display

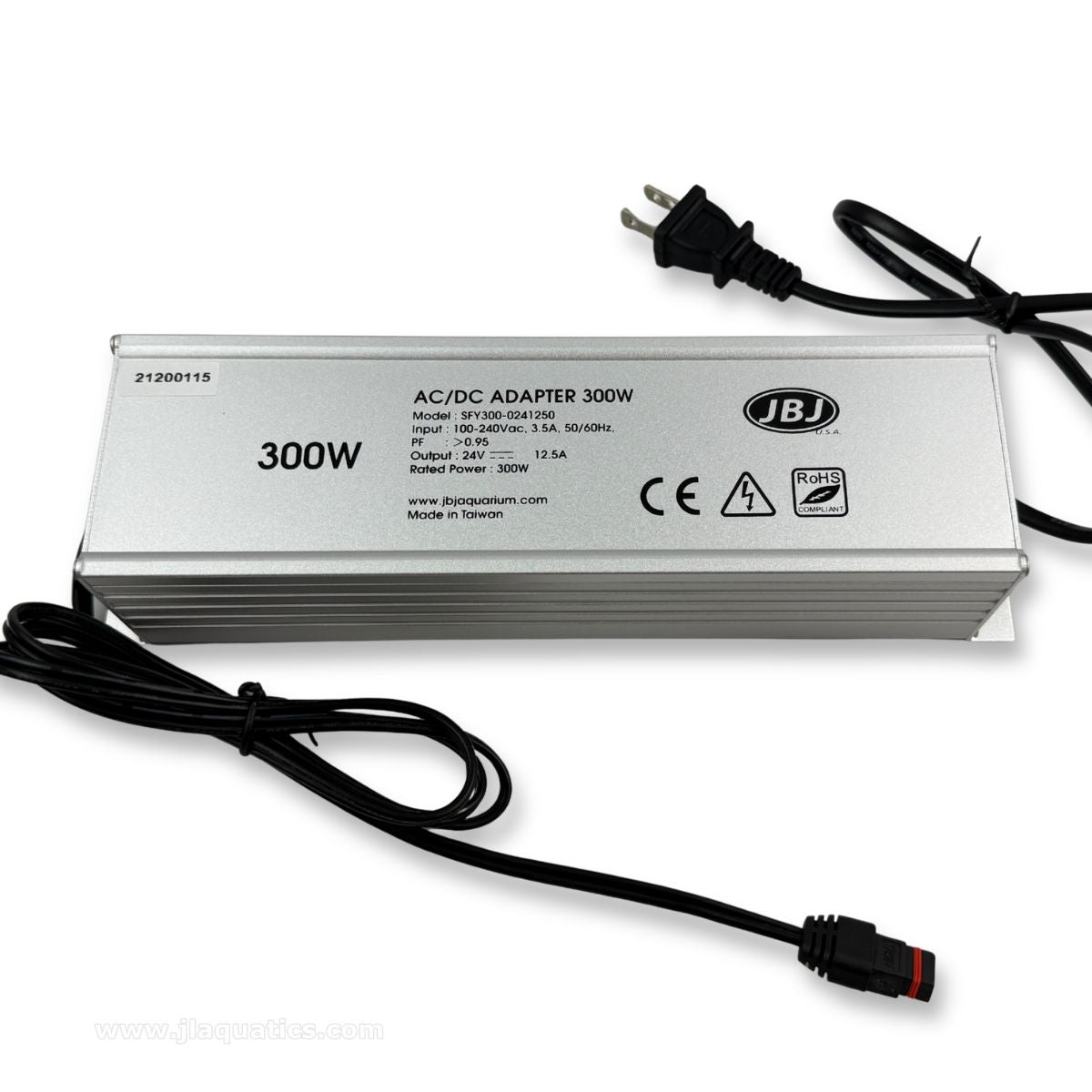

- Input power: DC 24V / 10A
- Pump wattage: 7 watts
- Maximum flow rate: 118 GPH
- Maximum head height: 36 inches
- Tubing size: 12mm
- Dimensions: 7.1 x 3.9 x 10.2 inches
- Mounting: Suction cup and hang-on bracket
- WiFi: No
- Apex compatible: No
- Warranty: 1 year manufacturer warranty
- Application: Freshwater and saltwater aquariums
- UPC: 810067703048
Sizing and Installation Notes for the JBJ Nano Arctica E-Chiller
The 20 Gallon Nano Arctica E-Chiller is intended for small aquariums and moderate cooling demands. Actual performance depends on room temperature, aquarium volume, lighting, pump heat, lid coverage, evaporation, stand ventilation, and the required temperature drop. Keep the chiller close to the aquarium, reduce unnecessary tubing length, minimize head pressure, and provide several inches of open airflow around the fan and heat sink. For larger systems, severe heat loads, or large temperature pull-downs, a compressor-based chiller may be more appropriate.
Directions
Place the chiller on a stable surface in a dry, well-ventilated location. Connect the included pump, 12mm tubing, and fittings so water circulates from the aquarium through the chiller and back to the system. Start water flow and inspect all connections for leaks before powering the chiller. Set the target temperature using the digital control panel and allow the aquarium to cool gradually. Keep the fan and heat sink area clear of dust and obstructions, and always disconnect power before cleaning or maintenance.

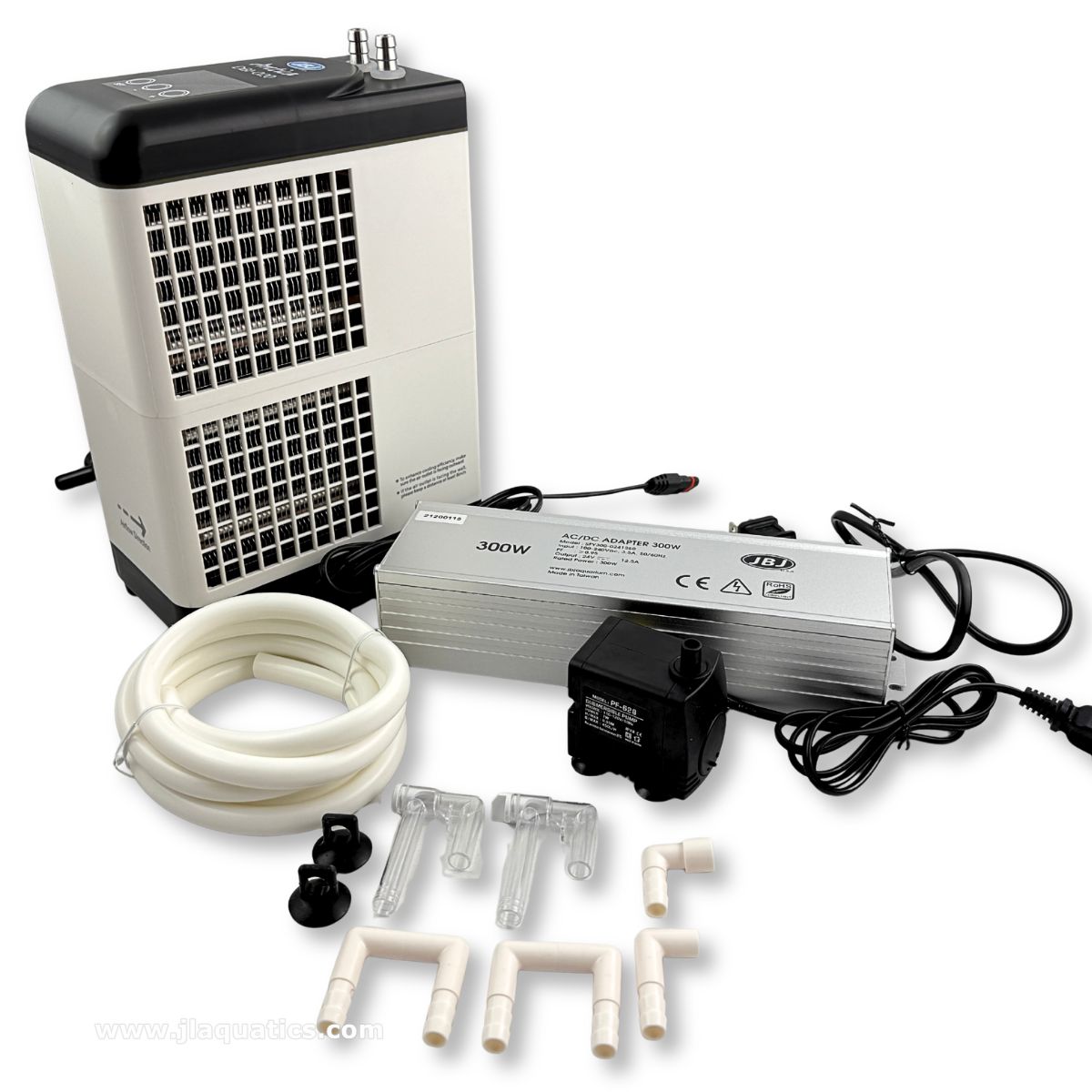

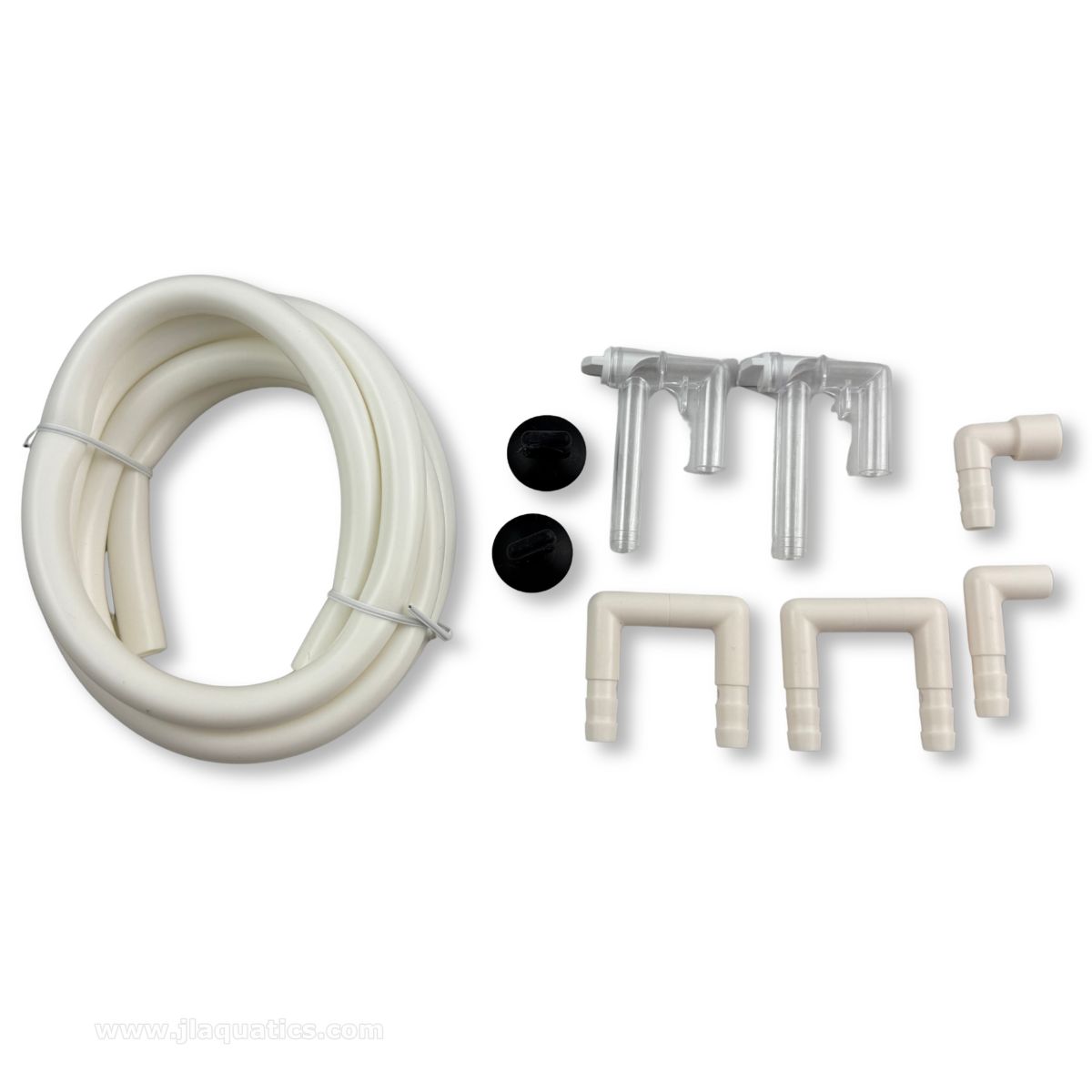

What's Included
- JBJ Nano Arctica E-Chiller 20G cooling unit
- 7 watt submersible water pump
- 12mm flexible tubing
- External temperature sensor
- Power supply
- Adjustable flow control
- Suction cup mounting hardware
- Hang-on bracket hardware
- L-pipe connector
- Water hose connector
- Manufacturer documentation
