Ecotech Versa VXF-1 4 Pack Dosing Pumps

Overview of Ecotech Versa VXF-1 4 Pack Dosing Pumps

The Ecotech Versa VXF-1 4 Pack Dosing Pumps package is a complete multi-pump Versa system designed for advanced aquarium dosing, fluid transfer, automatic water changes, auto top-off, reactor feeding, and multi-channel reef supplementation. The VXF-1 includes four Versa VX-1 peristaltic pumps with a Versa Base Station, giving aquarists a clean, organized, high-capacity dosing platform from the start.

Each Versa pump uses EcoTech’s precision peristaltic design with DC stepper motor control, planetary gearing, Mobius app programming, and a wide dosing range from extremely small micro-dosing up to high-volume transfer. For reef aquariums, the four-pump format is especially useful for dosing alkalinity, calcium, magnesium, and trace elements, or for running paired pumps for automatic water changes while still leaving additional channels for supplementation or reactor feed applications.

Ecotech Versa VXF-1 4 Pack Dosing Pumps Features

• Complete four-pump Versa system: Includes four VX-1 pumps and a Versa Base Station for a clean multi-channel installation.
• Precision peristaltic dosing: Designed for accurate, repeatable fluid movement in reef, marine, and freshwater systems.
• Accurate to 2% or less: Built for dependable dosing performance when calibrated and maintained correctly.
• Wide dosing capability: Handles micro-dosing, continuous dosing, high-volume transfer, ATO, automatic water changes, and reactor feed applications.

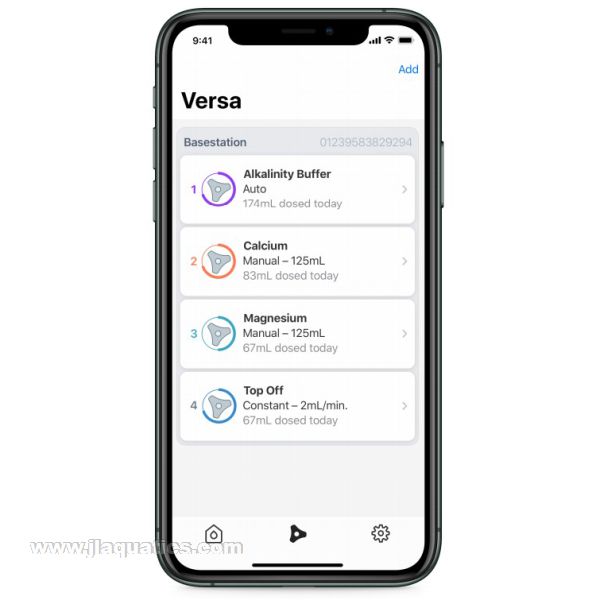

• Mobius app control: Program each pump through Mobius with schedules, rates, modes, volumes, and operating profiles.
• Three dosing modes: Supports Auto Mode, Continuous Mode, and Manual Mode for different aquarium automation tasks.
• Up to 30 manual events per pump: Manual Mode allows up to 30 discrete dosing events per pump in a 24-hour period.
• Catch-Up and safeguards: Programming features help manage interruptions and reduce common dosing errors.
• Planetary gear drive: Drive configuration is optimized for precision, long-term durability, and reliable operation.
• Heavy-duty construction: Durable ABS plastics and laboratory-grade tubing support demanding continuous-use applications.
• Organized Base Station layout: Keeps four pumps aligned, powered, indexed, and easier to manage in an equipment cabinet.
• Ideal for advanced reef automation: Excellent for two-part dosing, trace element systems, kalkwasser, ATO, auto water changes, and reactor feeds.

Specifications for Ecotech Versa VXF-1 4 Pack Dosing Pumps

• Model: Versa VXF-1
• UPC: 653341192028
• Product Type: Four-pack Versa peristaltic dosing pump system with Base Station
• Included Pumps: 4 x Versa VX-1 Dosing Pumps
• Applications: Dosing, auto top-off, automatic water changes, reactor feeding, and compatible liquid feeding
• Accuracy: 2% or less
• Minimum Dosing Volume: 6 microliters per minute
• Maximum Continuous Dosing: 200 ml per minute per pump
• Maximum Volumetric Dosing: 300 ml per minute per pump

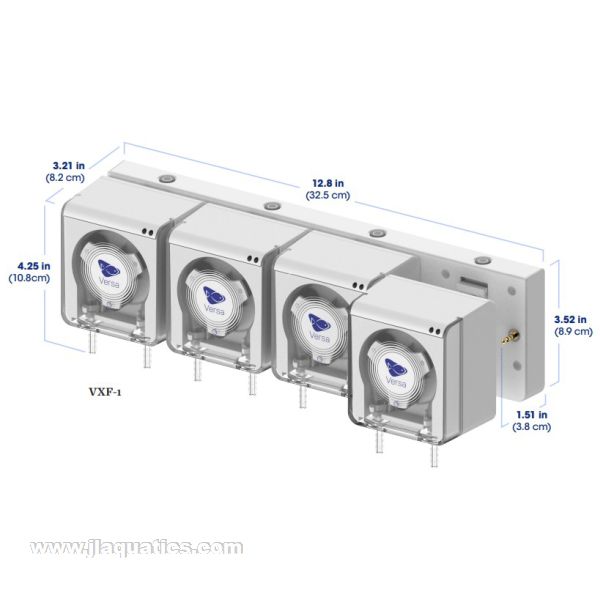

• Overall Length: 12.80 in. / 325.12 mm
• Overall Width: 3.21 in. / 81.5 mm
• Overall Height: 4.21 in. / 107 mm
• Power Consumption: 60W
• Universal Input Range: 110-240VAC / 50-60Hz
• Peak Inrush Current: 2.0A
• Included Connectors: Female PTC and barbed adapter
• Control Platform: Mobius app
• Base Station: Included

Compatibility/Notes for Ecotech Versa VXF-1 4 Pack Dosing Pumps

• Suitable for marine, reef, and freshwater aquariums requiring multi-channel dosing or fluid transfer.
• Common reef uses include alkalinity, calcium, magnesium, trace elements, amino acids, kalkwasser, auto top-off, automatic water changes, and reactor feed control.
• Dosing accuracy depends on proper calibration, tubing condition, fluid viscosity, head pressure, line length, and maintenance.
• Use appropriate aquarium-safe tubing, fittings, reservoirs, and check valves where needed for the specific application.
• For automatic water changes, confirm safe reservoir sizing, drain routing, failsafes, and pump programming before leaving the system unattended.
• Additional tubing, reservoirs, fittings, and accessories are sold separately unless specifically included by the retailer or bundle.

Directions for Ecotech Versa VXF-1 4 Pack Dosing Pumps

• Install the Base Station in a dry, accessible area protected from splashing and salt spray.
• Dock the four Versa pumps securely on the Base Station and connect power according to EcoTech’s instructions.
• Route and label all intake and output tubing before programming the pumps.
• Pair each pump with Mobius and calibrate every channel individually.
• Create dosing programs for each pump using Auto, Continuous, or Manual Mode as needed.
• Verify dosing volumes manually before relying on the system for aquarium supplementation or water changes.
• Inspect tubing, fittings, pump heads, reservoirs, and dosing output regularly as part of routine maintenance.

What's Included

• 4 x Ecotech Versa VX-1 Dosing Pumps
• 1 x Ecotech Versa Base Station
• Female PTC Connectors and Barbed Adapters as supplied by EcoTech Marine
• Power supply and documentation as supplied by EcoTech Marine
